ZIRCON 7000

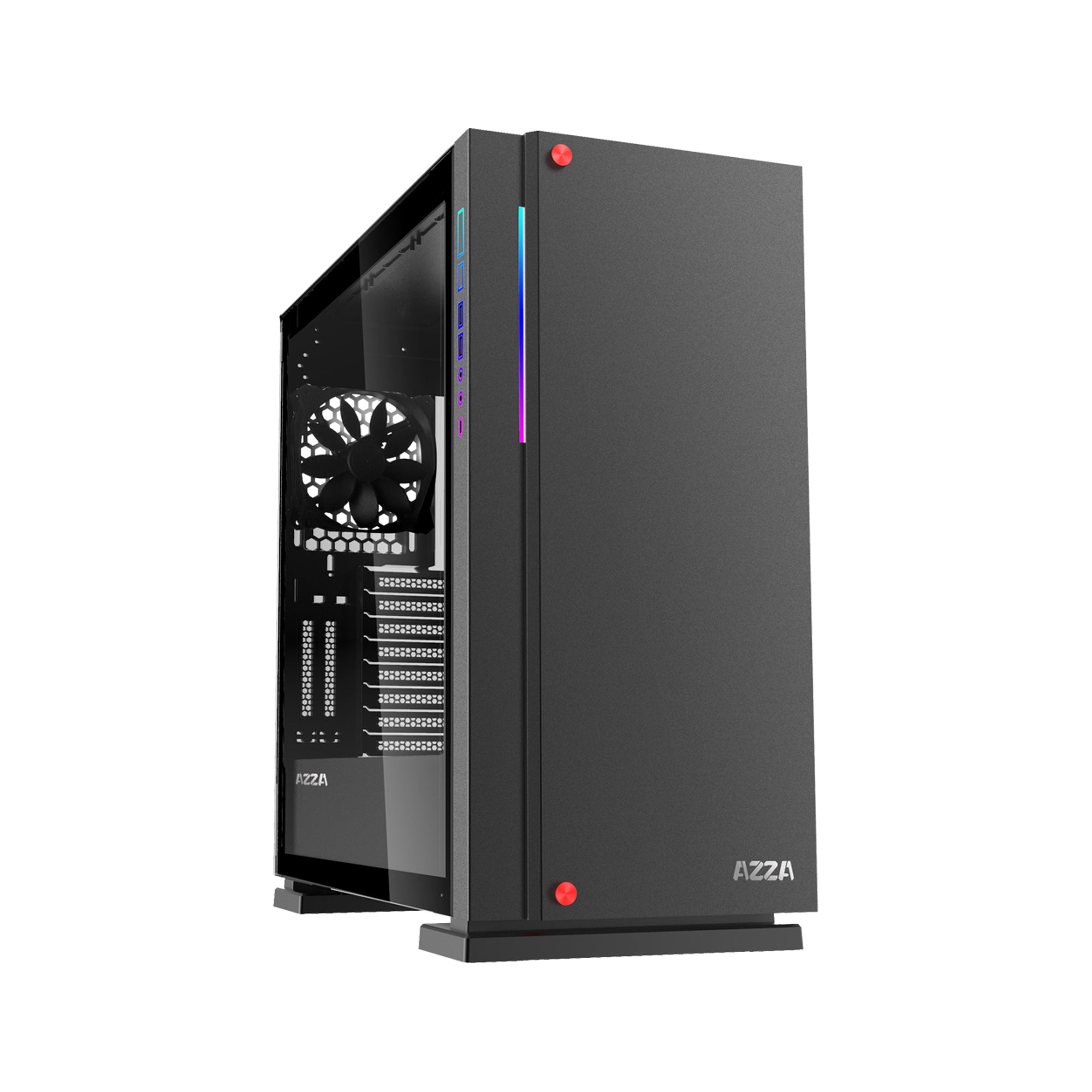

The Zircon 7000 is a unique case that boasts a completely metal front panel. It is a full tower case with plenty of features, perfect for any gamer who needs a functional case that can house all of the necessities, but doesn’t need anything too fancy. It can fit up to 390mm long video cards, as well as up to EATX motherboards and ATX power supplies. The case comes included with an adjustable video card holder, to help support the weight of the beefier cards on the market. Theres also a customizable cable management bar that helps keep the cables organized and out of the way. The beautiful metal front panel sports an attractive digital RGB strip, which can be controlled through any compatible motherboard. The Zircon 7000 comes included with 1 rear fan and 1 front fan, which is just enough to get your started with your cooling needs. The case is also modern, boasting 2 USB 3.0 ports as well as a USB Type C port. The Zircon 7000 features two high quality tempered glass side panels, which allow you to show off your build in all its glory, making this case a highly functional and aesthetic choice for anyone.

Fans: Up to 3 x 120 mm or 2 x 140 mm

Radiator: Up to 360 mm

Fan: 3 x 120 mm or 2 x 140 mm

Radiator: Up to 360 mm

SPECIFICATIONS

CSAZ-7000

Download Manual
Type

ATX Full Tower

Color

Black / Black (interior)

Side Panels

Tempered glass on both sides

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 390 mm long video card (Horizontal / Vertical)

Motherboard Compatibility

E-ATX (<270 mm), ATX, Micro-ATX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 5

Internal 3.5" Drive Bays

Up to 5

Expansion Slots

8 (Horizontal) + 2 (Vertical)

I/O Ports

Power button, reset button, HD audio, USB 3.0 x 2, Type C

Case Dimension (H x W x D)

515 x 233 x 515 mm / 20.3 x 9.2 x 20.3 inches

Weight

14.9 kg / 32.8 lbs

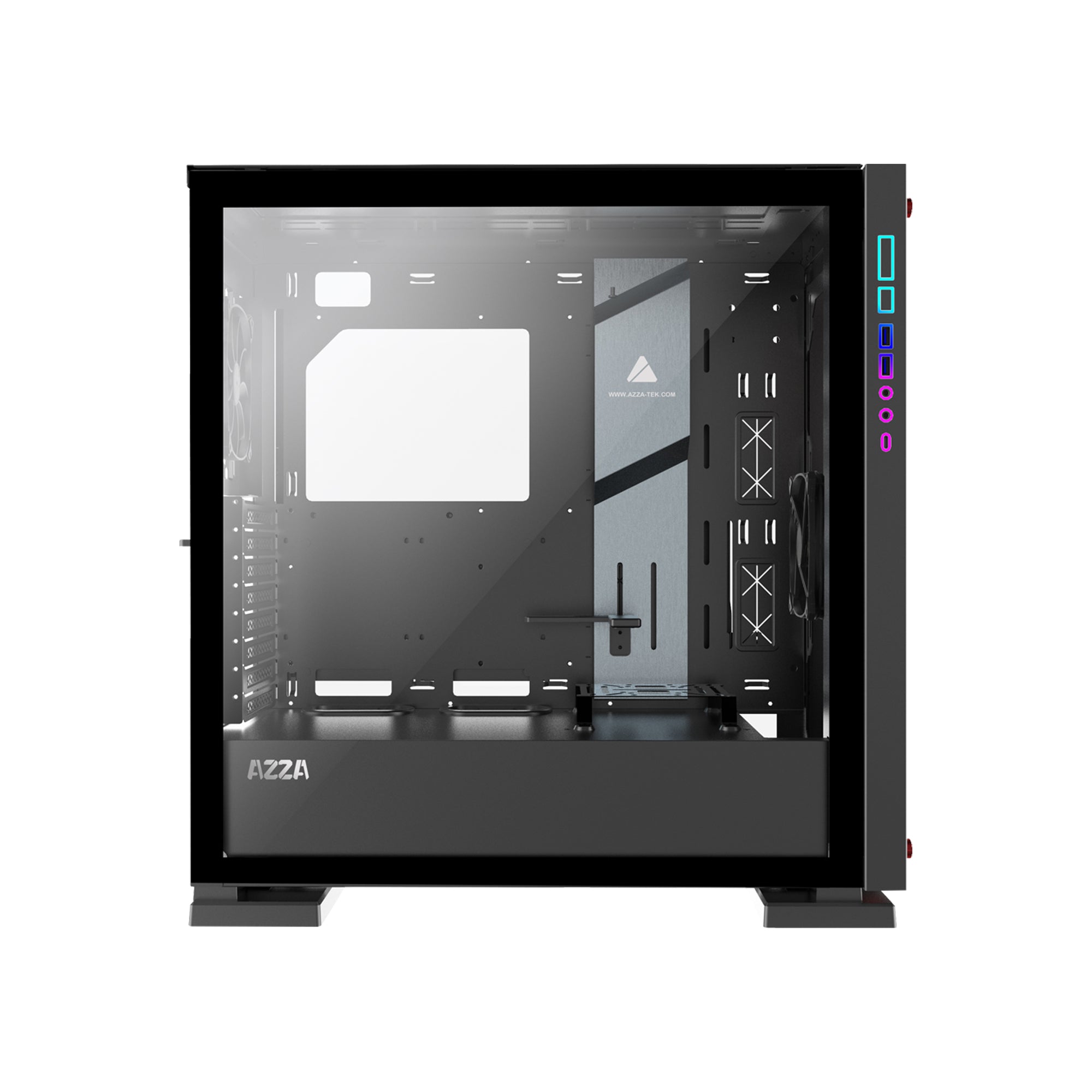

Tempered Glass Side Window

High-quality tempered glass side window allows for clear visuals to inner components

Addressable RGB Light Effects

Addressable RGB light I/O ports and strip on the front panel. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting

Available Fan Ports

3 x 120 mm or 2 x 140mm fan ports in the front

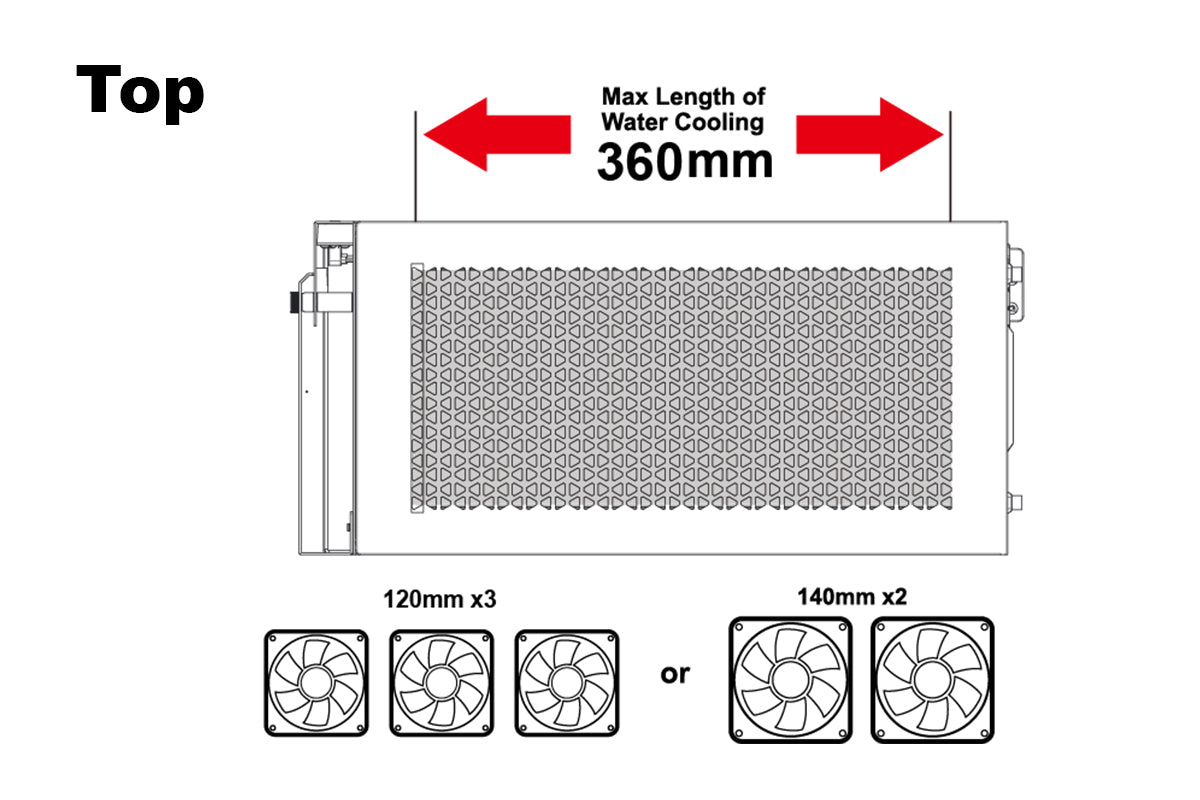

3 x 120 mm or 2 x 140 mm fan ports on the top

1 x 120 mm fan port in the rear

Included Fans

1 x Black fan in front

1 x Black fan in rear

Water Cooling

Supports radiators up to 280 / 360 mm in the front

Supports radiators up to 280 / 360 mm on the top

Dust Filters

Removable (magnetic) dustproof net on the top and front, slide-out dust filter at the bottom of chassis.

Power Supply Support

Bottom mounted ATX power supply
