PYRAMID Mesh

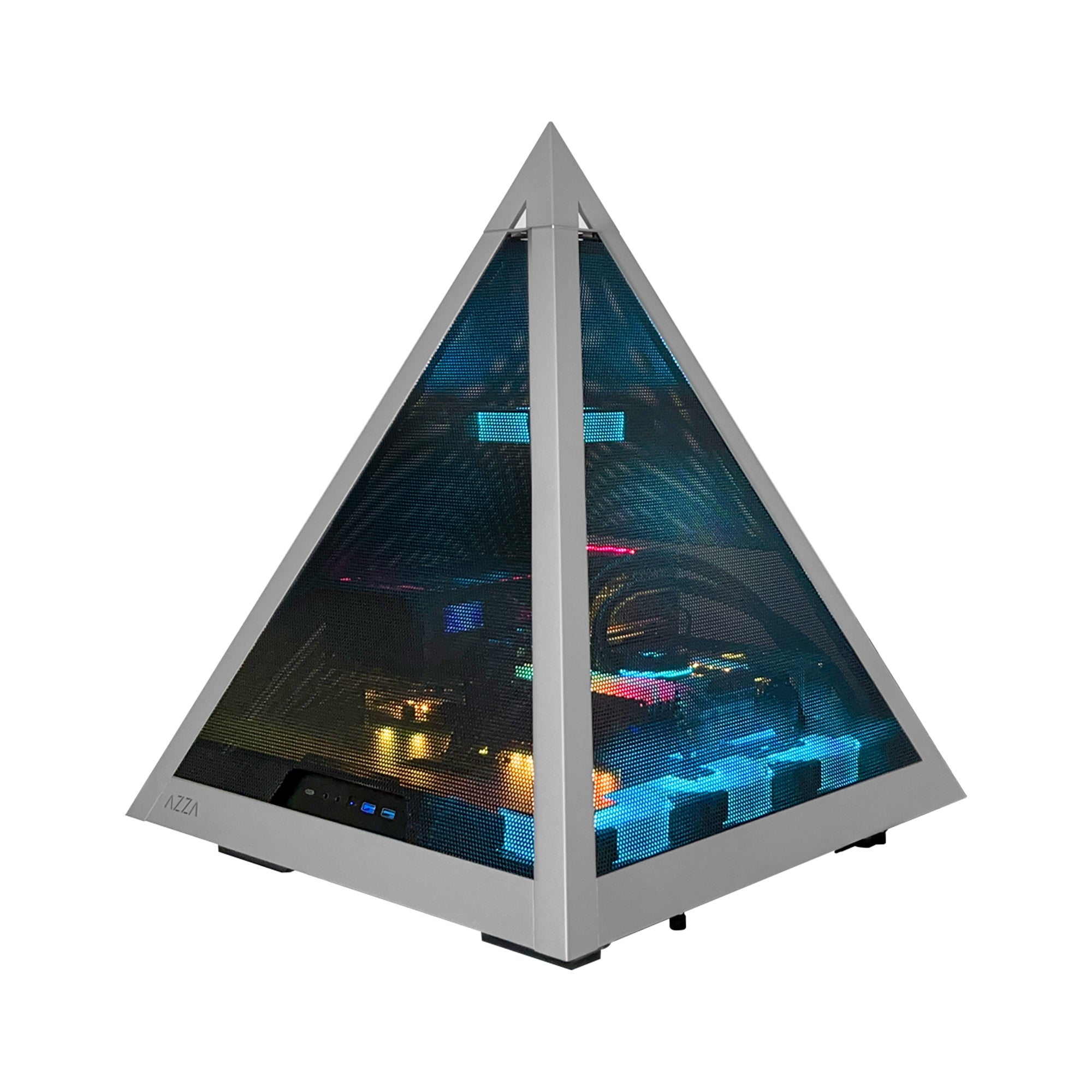

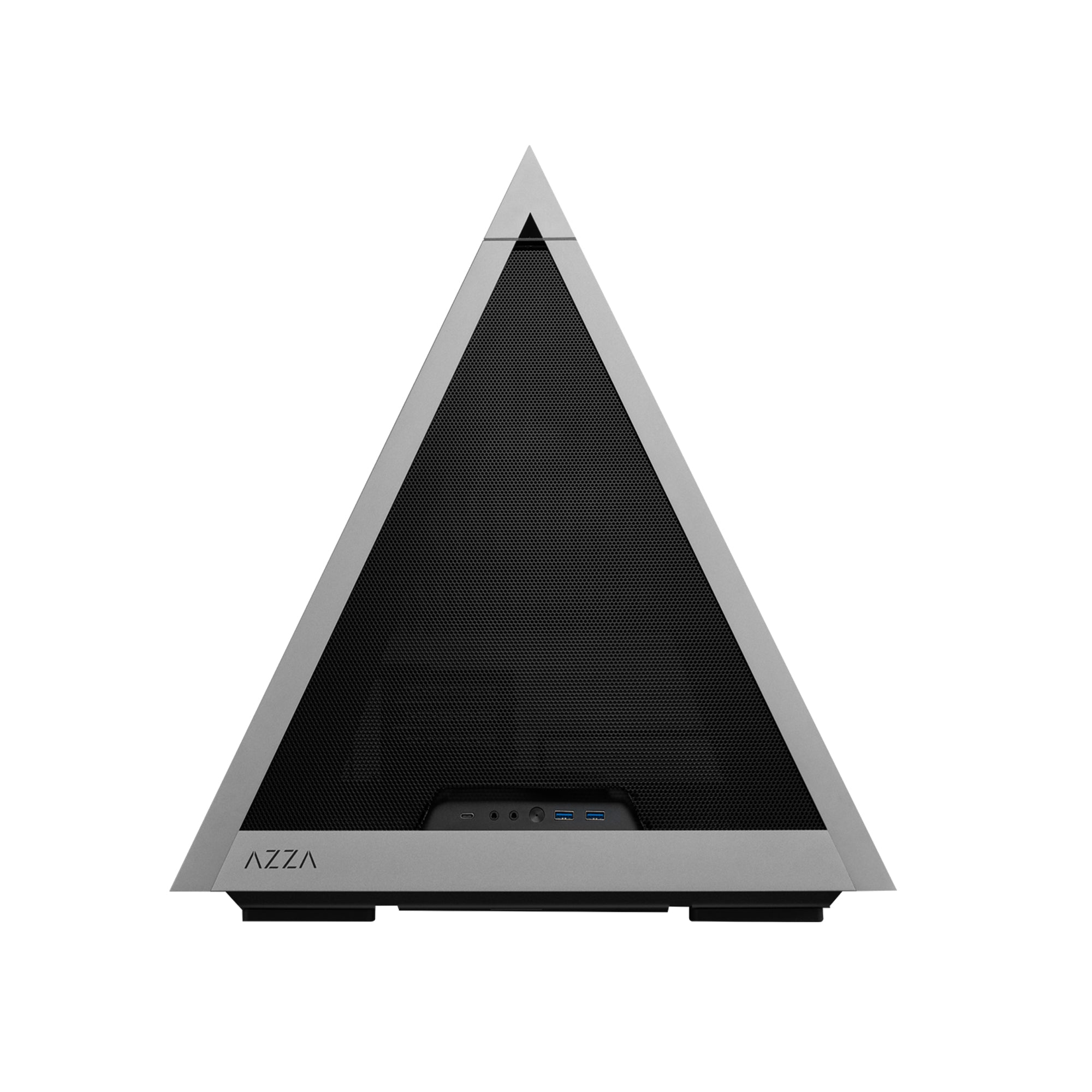

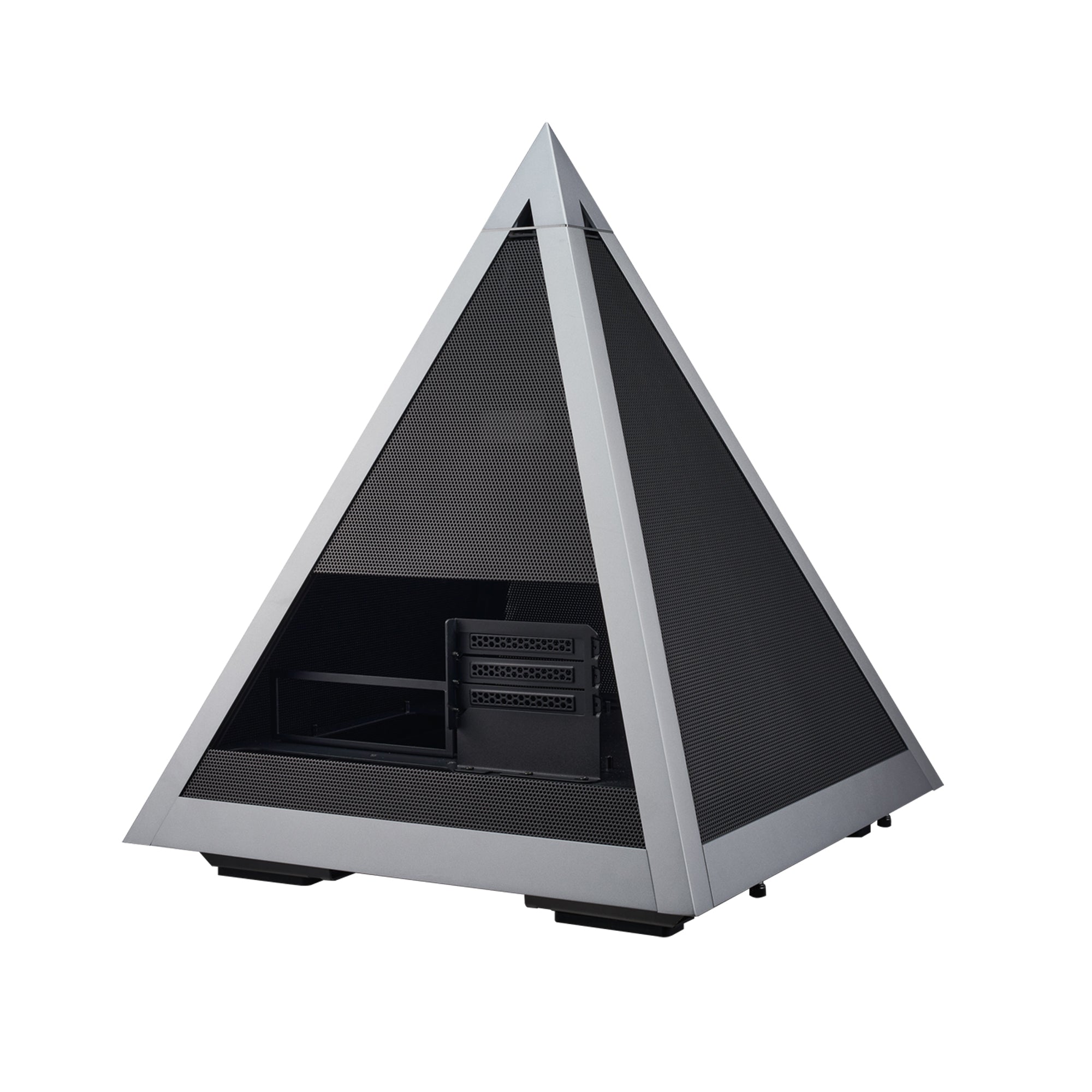

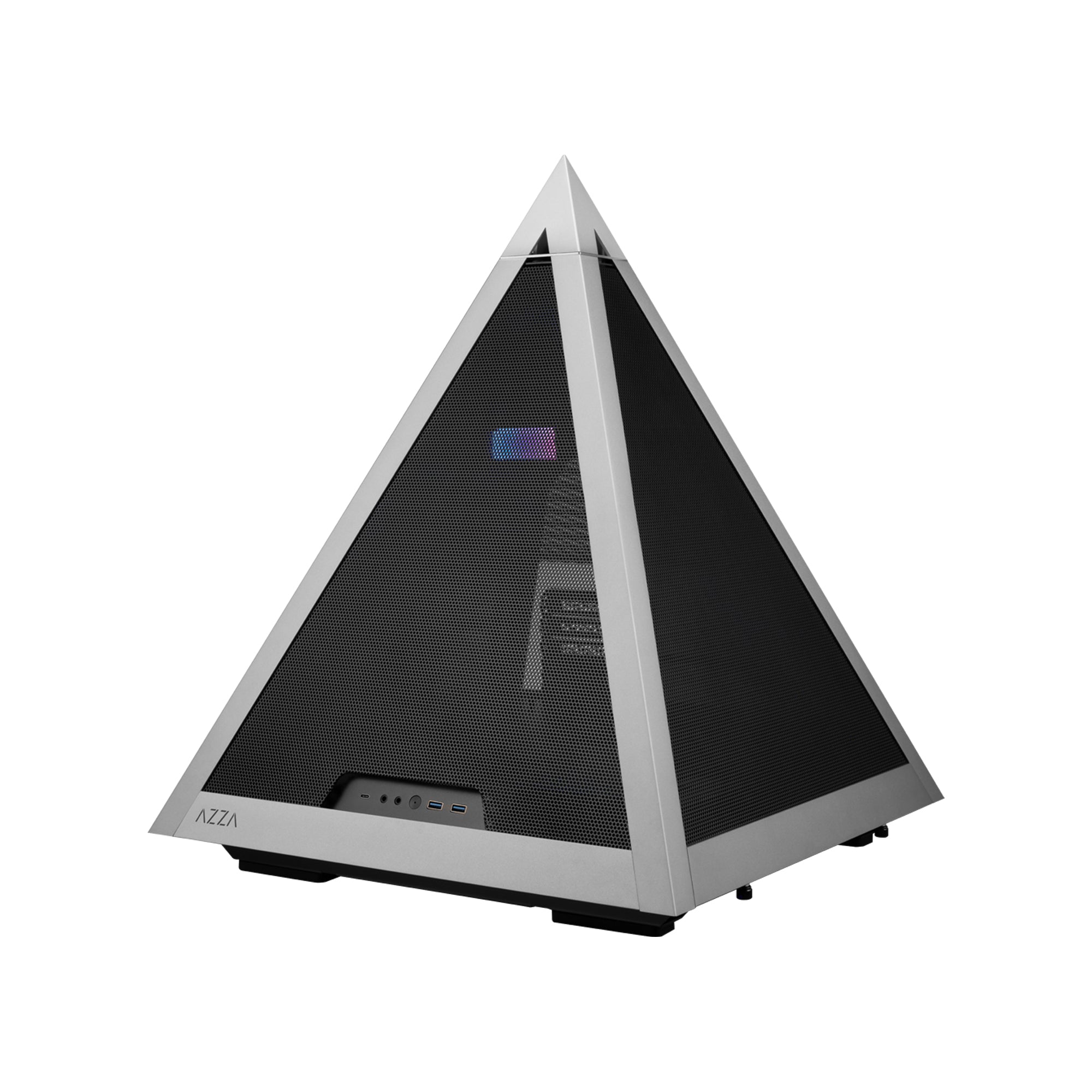

The AZZA PYRAMID Mesh is an iconic ATX pyramid enclosure for PC connoisseurs looking for a high airflow showcase chassis with premium craftsmanship. The exterior frame can be completely separated from the robust inner frame for 360-degree access to components, while the elevated base is inherently stable.
ATX Tower
1.5 ~ 2.0 mm SPCC + 2.5 mm aluminum
4 sides panel are full metal mesh
Up to 95 mm
L = 330 mm / W = 150 mm / H = 70 mm (Horizontal)
<305 x 280 mm E-ATX , ATX, Micro-ATX, Mini-ITX
Up to 2
Up to 1
(Convertible with 2.5" SSD x 1)
3
2 x USB 3.0, HD audio, USB type C, metal power button
558 x 490 x 490 / 22 x 19.3 x 19.3 inches
585 x 490 x 490 mm / 23 x 19.3 x 19.3 inches
12.9 kgs / 28.4 lbs
The metal iron mesh not only improves the heat dissipation effect but also has the visual beauty of light transmission

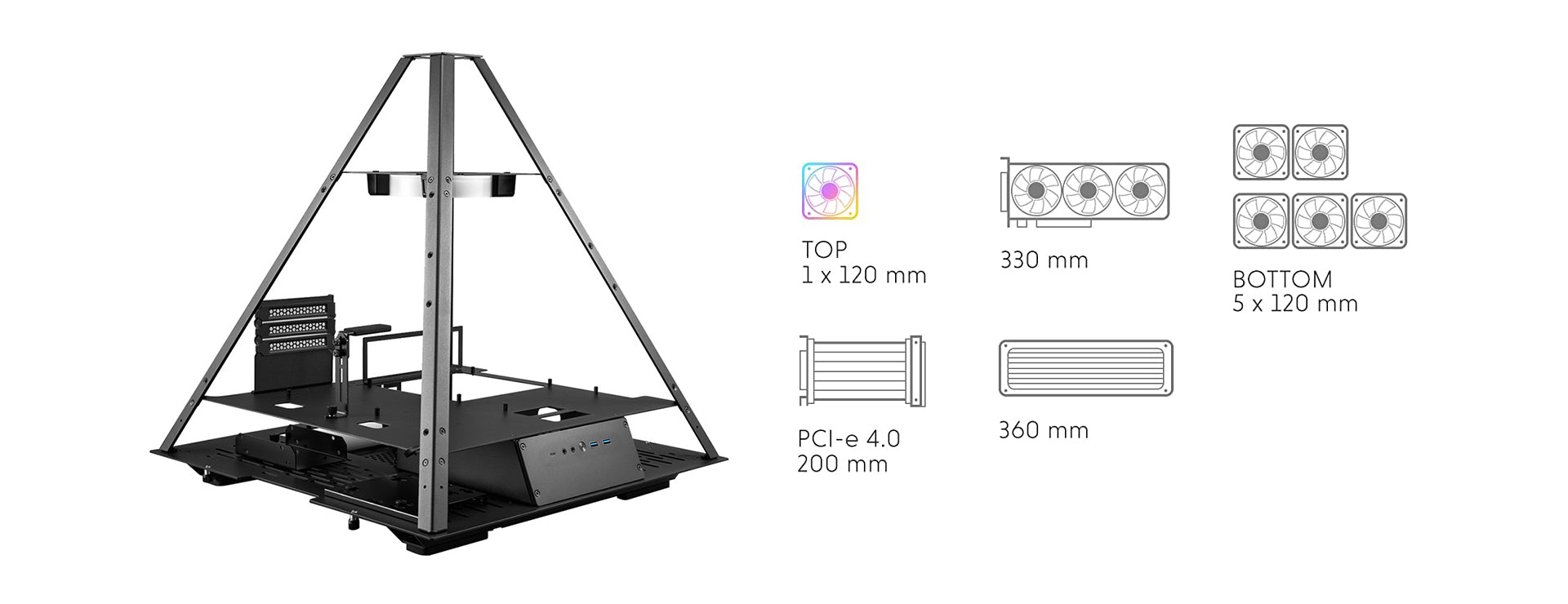

1 x 120 mm fan port in the top
5 x 120 mm fan port in the bottom
1 x 120 mm Hurricane III Digital RGB fan
Supports radiator up to 360 mm on the bottom right
ATX power supply inside its own isolated chamber, preventing its heat from affecting other components
A pre-cut hole for easy installation of CPU cooler, eliminating the need to remove the motherboard
200 mm PCI-E 4.0 extension cable for VGA card (support E-ATX, ATX)
Adjustable video card holder
The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
