IRIS 330


◎Included Fans:2 x 120 mm digital RGB fan in the front
◎Left side panel: Tempered glass with rubber mounts
◎Max CPU Cooler Height: Up to 155 mm
◎Max Video Card Length: Up to 380 mm
◎Flexible Storage Options: Power button, reset button, HD audio, USB 3.0 x 1, USB 2.0 x 2
◎Motherboard Compatibility: ATX

Fans: Up to 3 x 120 mm

Radiator: Up to 360 mm

Fans: 2 x 120 mm

SPECIFICATIONS

CSAZ-330

Download Manual
Type

ATX Mid Tower

Color

Black / Black (interior)

Side Panels

Left side panel: Tempered glass with rubber mounts

Max CPU Cooler Height

Up to 155 mm

Max Video Card Length

Up to 380 mm long video card

Motherboard Compatibility

ATX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 3

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

I/O Ports

Power button, reset button, HD audio, USB 3.0 x 1, USB 2.0 x 2

Case Dimension (H x W x D)

447 x 216 x 440 mm / 17.6 x 8.5 x 17.3 inches

Weight

5.49 kg / 12.1 lbs

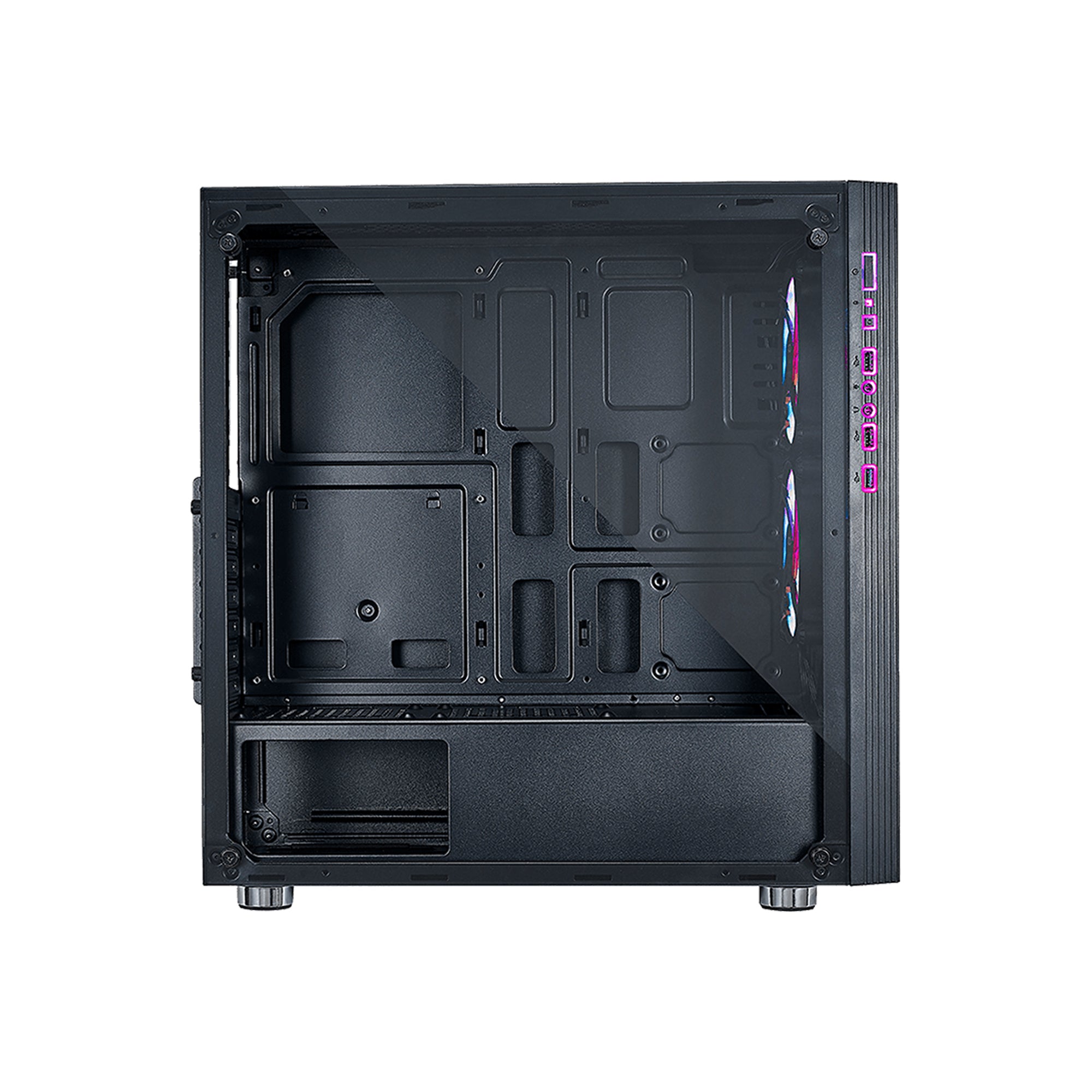

Tempered Glass Side Windows

High-quality tempered glass side window allows for clear visuals to inner components

Addressable RGB Light Effects

Addressable RGB light strips on the front panel and side port location, all controlled by RF Remote (2020 New version)

※Without RF REMOTE before 2020 versions, controlled by motherboard

Available Fan Ports

3 x 120 mm fan ports in the front

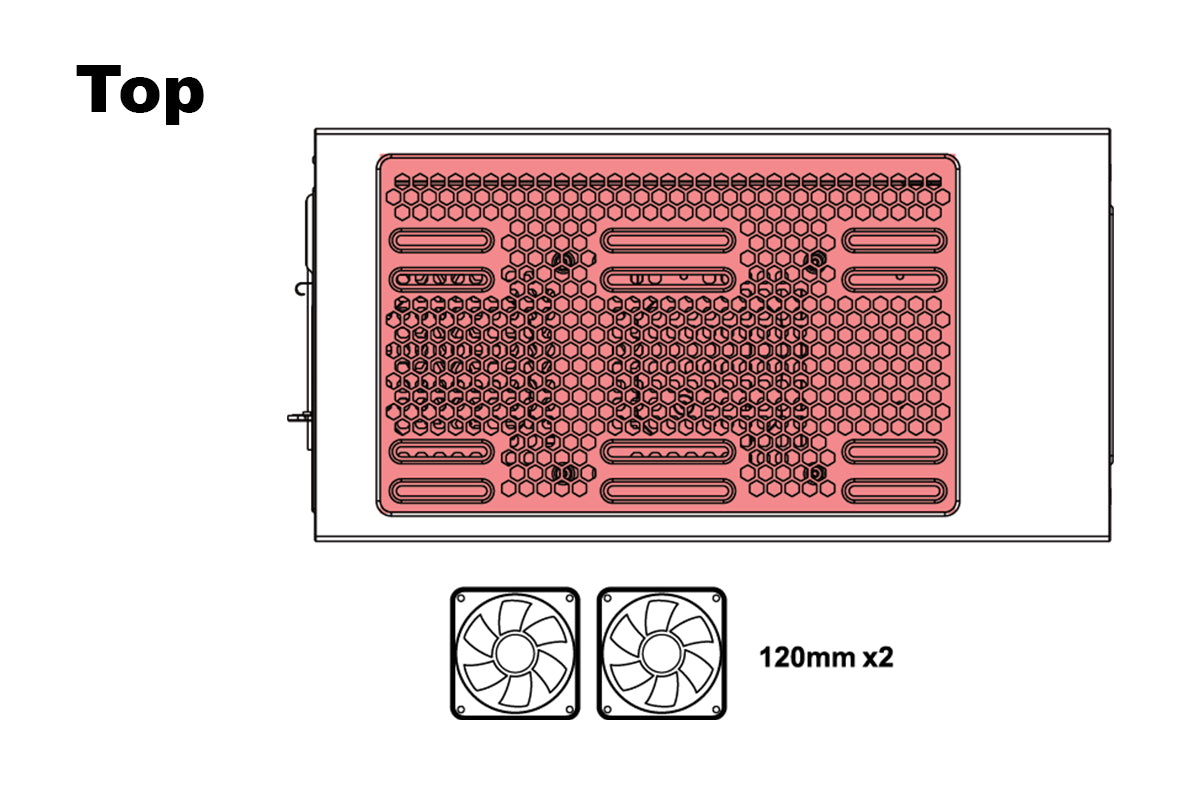

2 x 120 mm fan ports on the top

1 x 120 mm fan port in the rear

2 x 120 mm fan ports on the top of PSU chamber

Included Fans

2 x 120 mm digital RGB fan in the front

Water Cooling

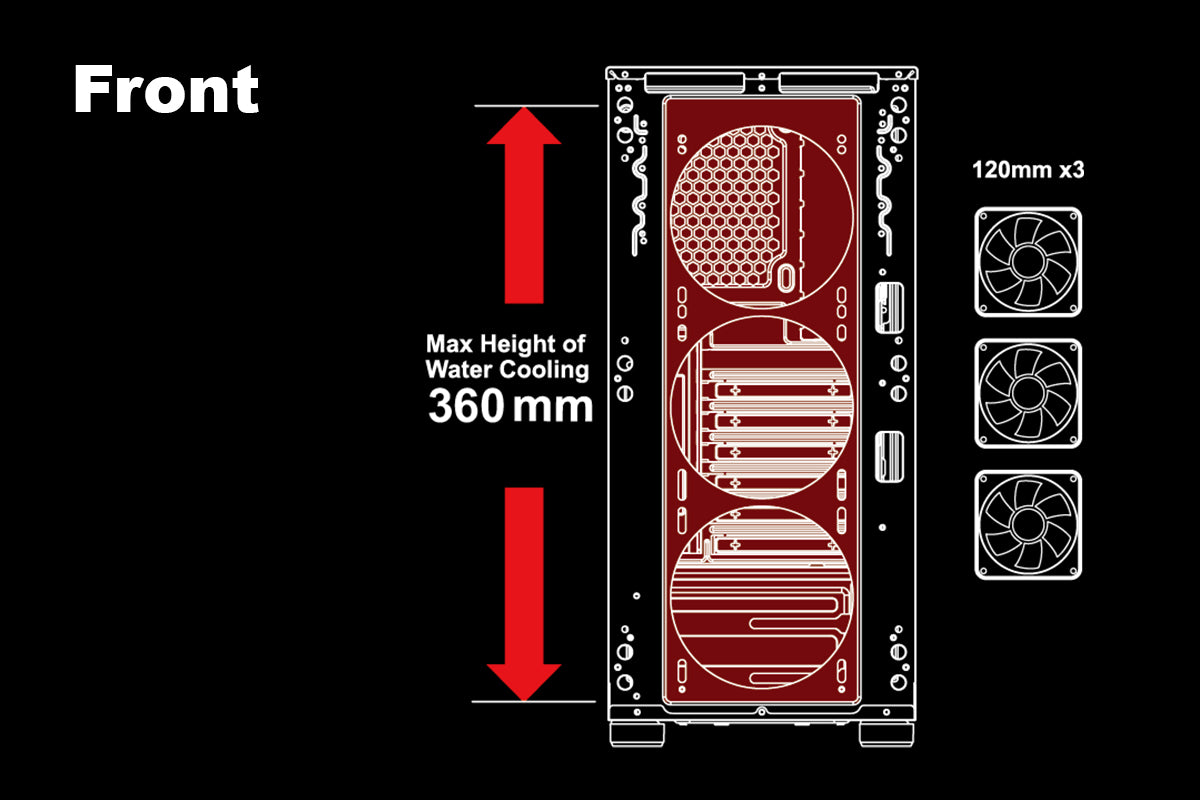

Supports radiators up to 240 / 360 mm in the front

Dust Filters

Removable (magnetic) dustproof net on the top, iron net at bottom of chassis

Power Supply Support

Bottom mounted ATX power supply
