INFERNO DF


Geared towards users who want flare and style in their rig. For the digital RGB fanatics, this case includes a front panel digital RGB strip along with two pre-installed RGB fans. Together with the digital RGB RF remote, fully customize the colors to make this case truly yours.

INFERNO DF

ATX Mid-Tower

Performance Ready

Straight out of the box, marvel at the striking singularity & mesh airflow of the pre-installed 120 mm RGB fan nestling under the subtle hum of the digital RGB strip of the front panel.

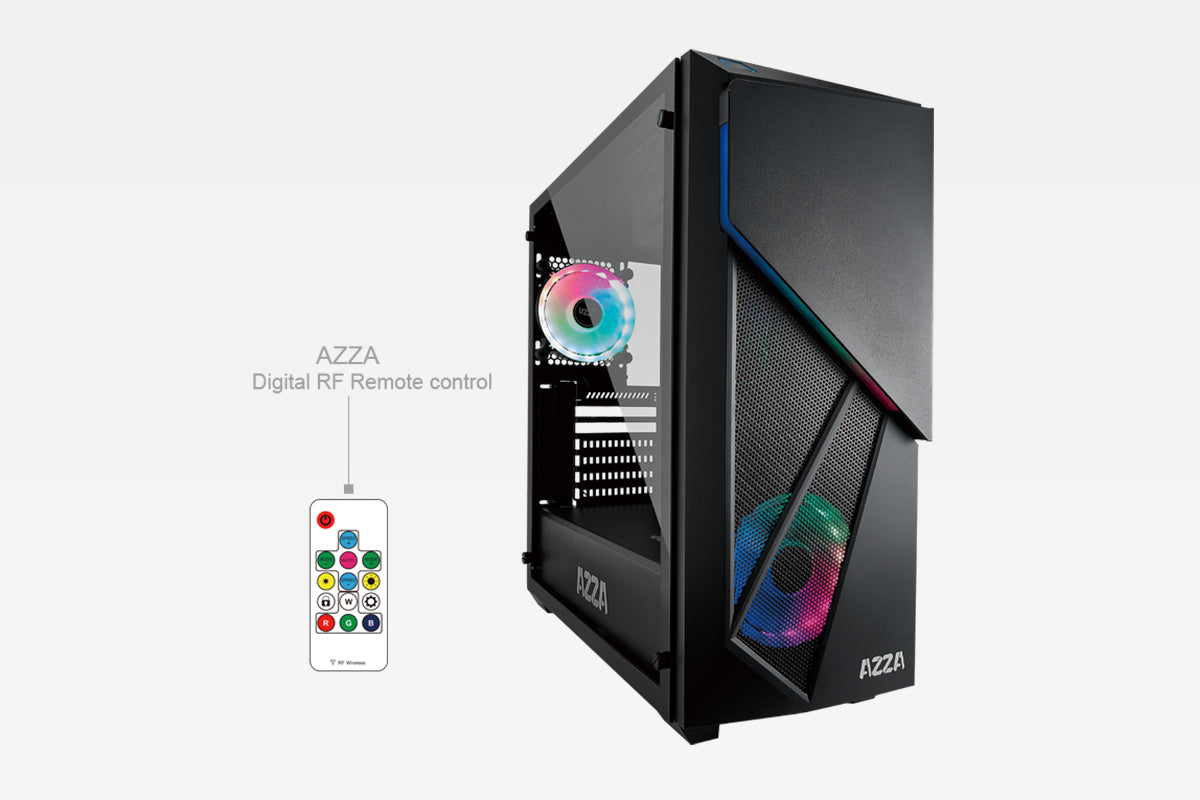

Customize Your Style

The INFERNO DF comes equipped with a digital RGB remote capable of adjusting all the innate lighting themes, speed, modes, and brightness right at your fingertips. Showcase your style however you want, whenever you want.

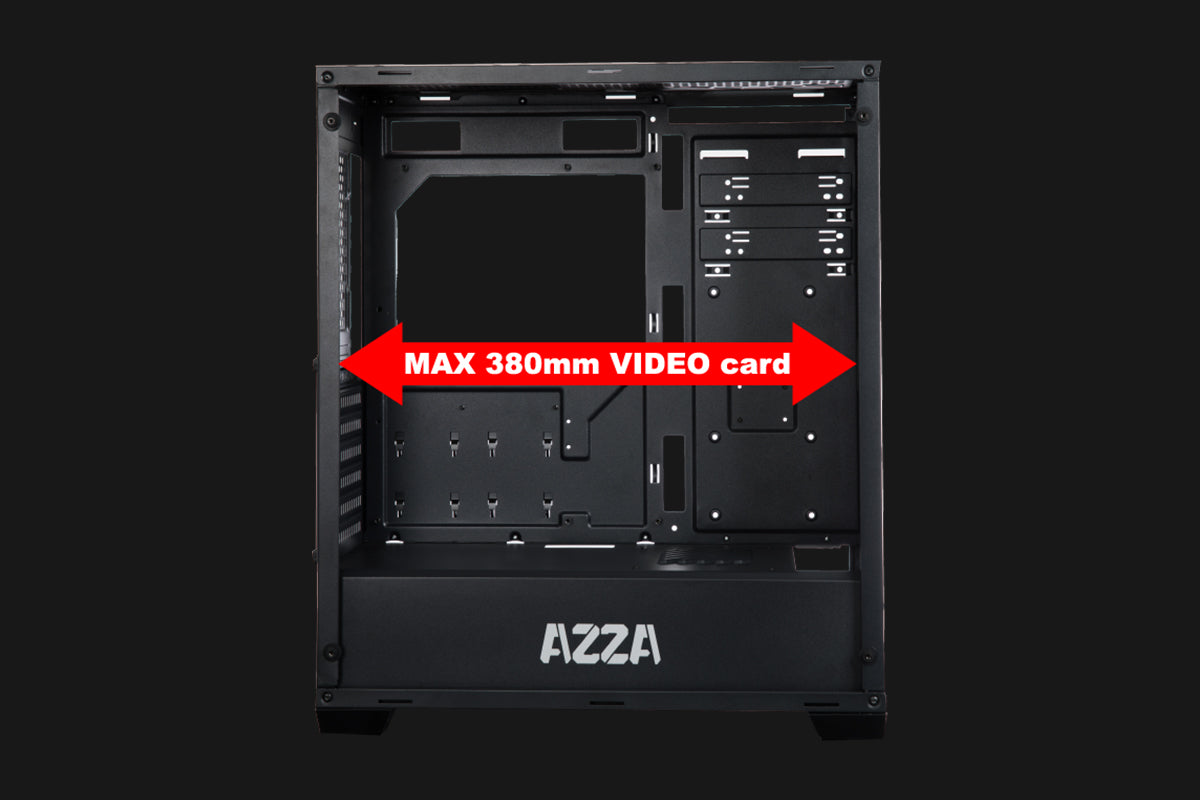

Accomodating GPU Support

Supports graphic cards up to 380 mm in length, and CPU cooling towers of up to 155 mm.

Intuitive I/O

The INFERNO DF presents a minimalist top I/O that includes:

  • Individual Mic and HD Audio jacks
  • 2 x USB 3.0 ports
  • 1 x HDMI expansion slot
  • LED rim light Power button

Flexible Storage Options

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD
Right side panel supports 2 x 2.5" SSDs
Left side panel has mounting holes for 2 x 2.5" SSDs

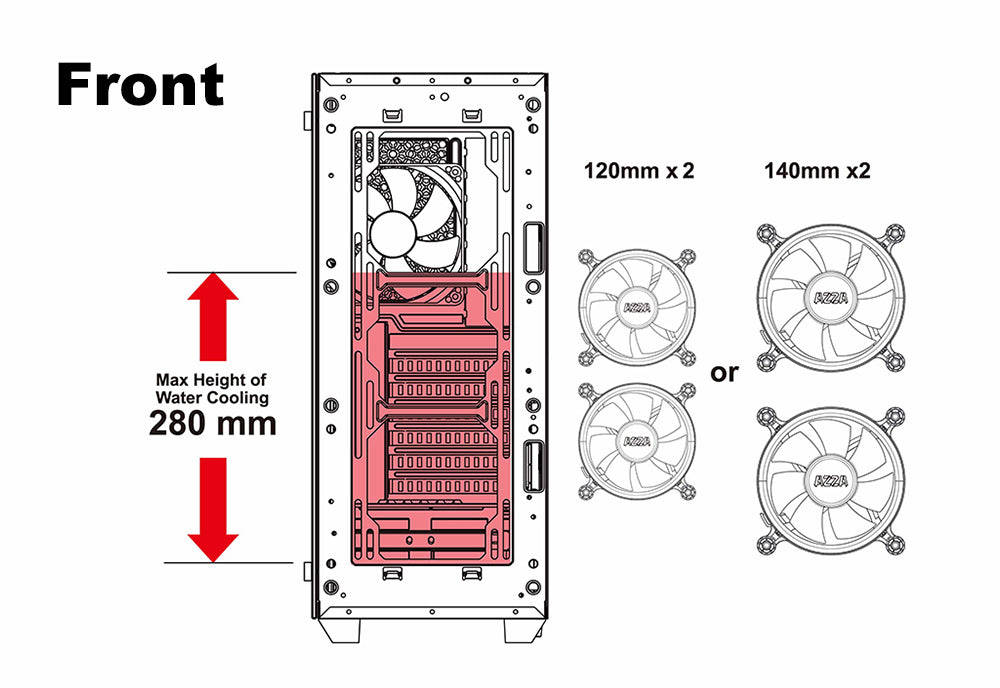

Front Cooling Support

Fans: Up to 2 x 120 mm or 2 x 140 mm (1 x 120 mm digital RGB fan included)

Radiator: Up to 280 mm

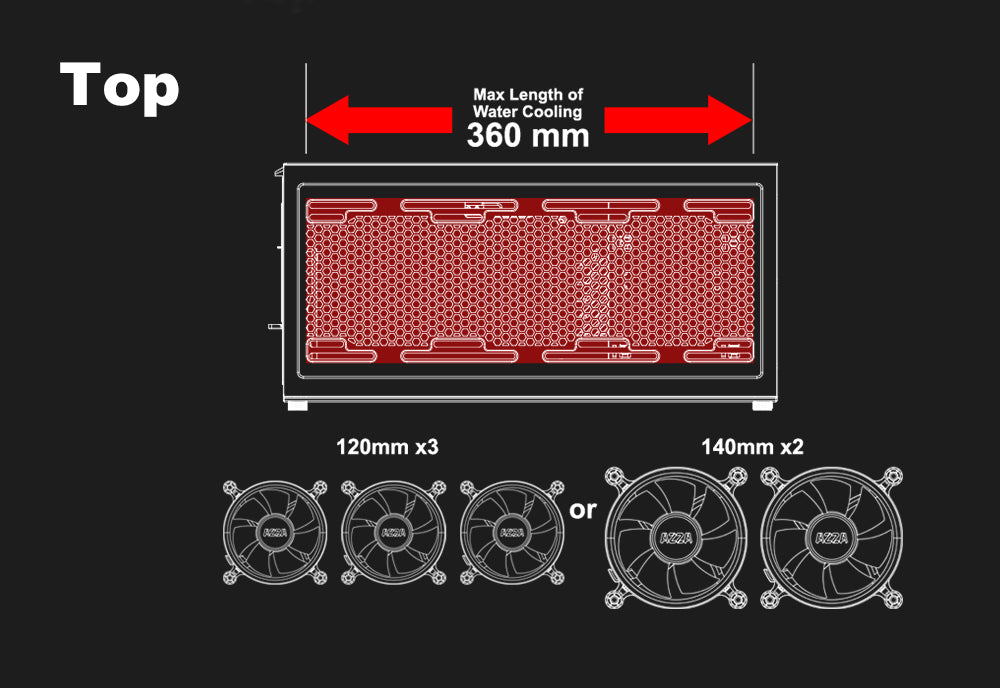

Top Cooling Support

Fan: 3 x 120 mm or 2 x 140 mm

Radiator: Up to 360 mm

SPECIFICATIONS

CSAZ-310DF

Download Manual
Type

ATX Mid Tower

Color

Black (exterior) / Black (interior)

Side Panel

Tempered glass with rubber mounts

Max CPU Cooler Height

Up to 155mm

Motherboard Compatibility

ATX, Micro ATX

External 5.25" Drive Bays:

1

Internal 2.5" Drive Bays

Up to 6 (2 with metal tray)

Internal 3.5" Drive Bays

Up to 2

Expansion slots

7

Fans Installed

Front : 1 x 120 mm AZZA Digital RGB fan

Rear : 1 x 120 mm AZZA Digital RGB fan

Dimensions(HxWxD)

480 x 205 x 475 mm / 18.9 x 8.1 x 18.7 inches

Weight

6.7 kg / 14.8 lbs.

Digital RGB Light Effects

Digital RGB Light in front, 2 x 120 mm digital RGB fans. All digital RGB light devices controlled by digital RGB RF remote

Max video Card Length

Supports up to 380 mm long video cards

Tempered Glass Side Window

High-quality tempered glass side window allows for clear visuals to inner components

Available Fan Ports

3 x 120mm or 2 x 140 mm ports on the top

2 x 120 mm or 2 x 140 mm ports in the front

(1 x 120 mm digital RGB fan included)

1 x 120 mm fan port in the rear

(1 x 120 mm digital RGB fan included)

Dust filters

Dustproof PVC net top and bottom of chassis

Water Cooling

Supports radiators up 360 mm on top / 280 mm in front

Isolated Chamber

Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components

Easy Installation Cooler

A pre-cut hole for easy installation of CPU cooler, eliminating the need to remove the motherboard
