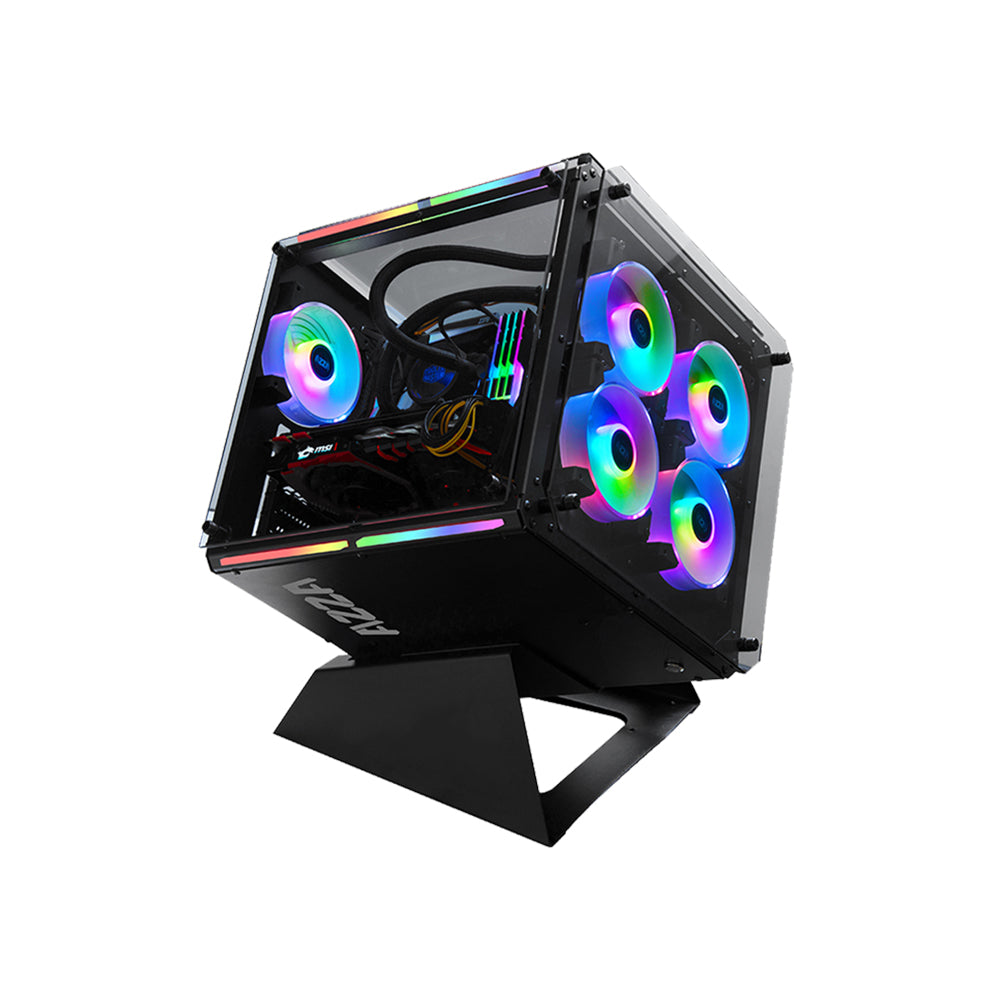

CUBE

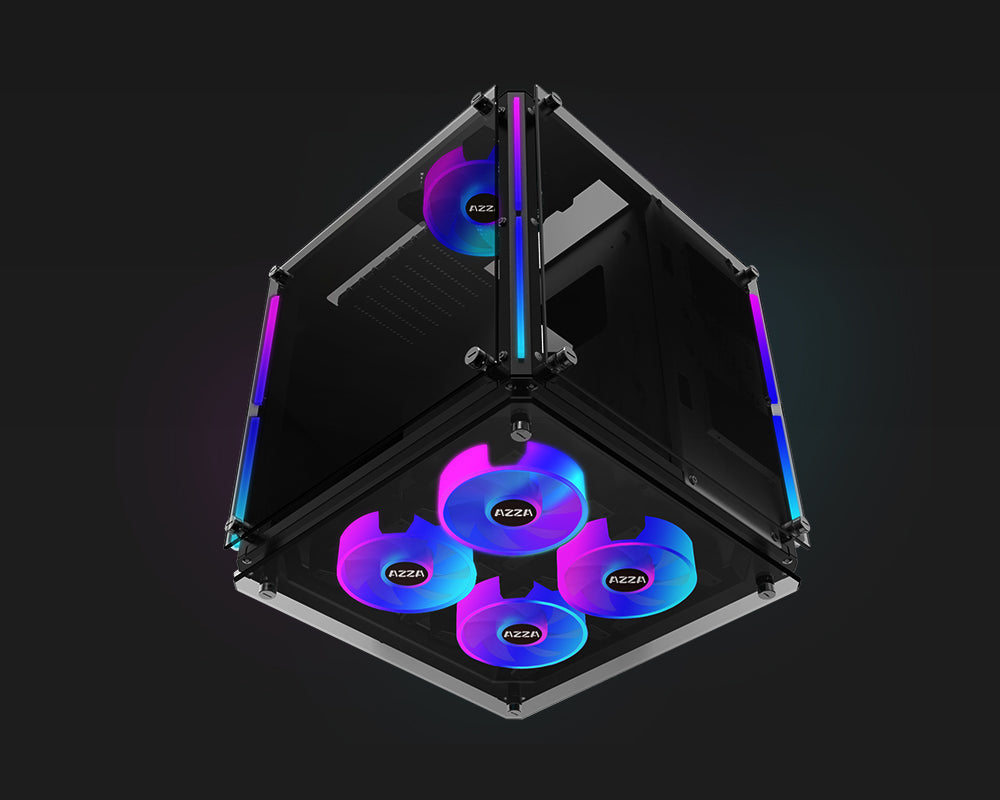

An aesthetically pleasing and revolutionary case with its elevated cubic design. To compliment the beautiful RGB lighting fully on display through translucent tempered glass, accented RGB light strips line the outer shell; in combination, allowing for some serious showcasing of amazing inner components.

Stylistic Display

CUBE

ATX Cube Enclosure


Quality Materials & Design

Crafted with scratch-resistant shaded glass enclosing the quality solid metal casing, the spectacle of lights can be preserved and fully displayed inside and out. Bound to be the focal point of any space whilst the darkened, lowkey features promise no distractions.

3-Sided Glass Panel

3 tinted tempered glass panes offer full view of the beautiful inner system. Easily removable by simply twisting the screws on/off.

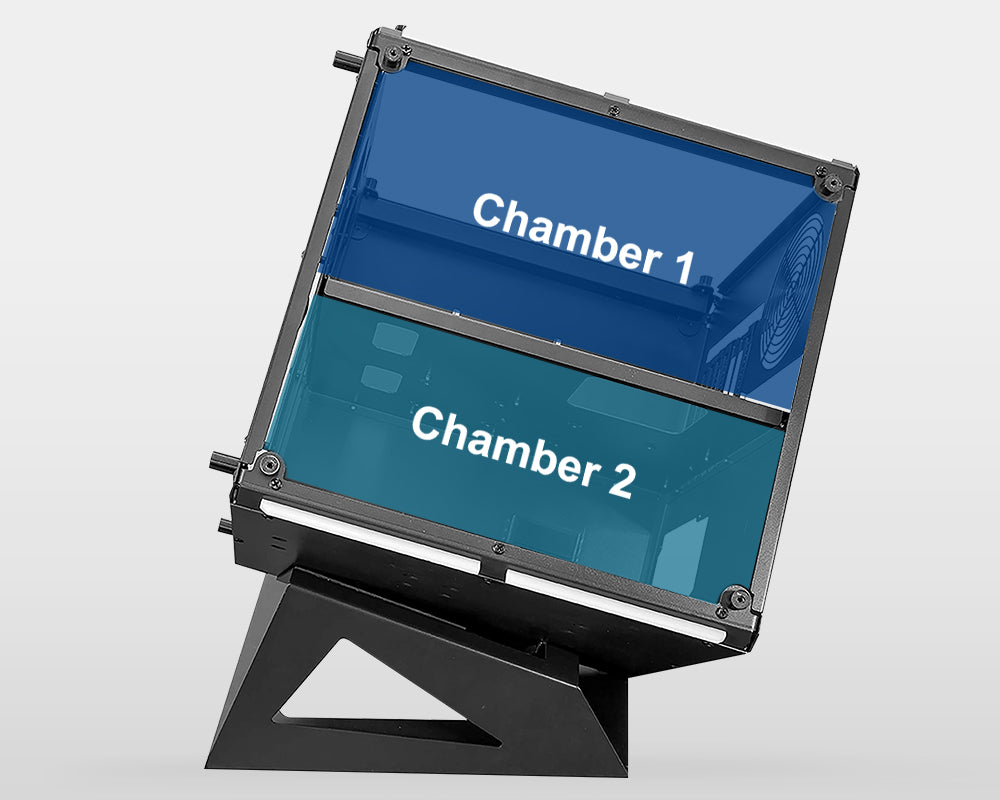

Dual-Chamber Chassis

Install components into separate chambers to remove residual heating. With an abundance of fans plus easy tucking away of cables, cable management and cooling is a breeze.

Elevate Your Style

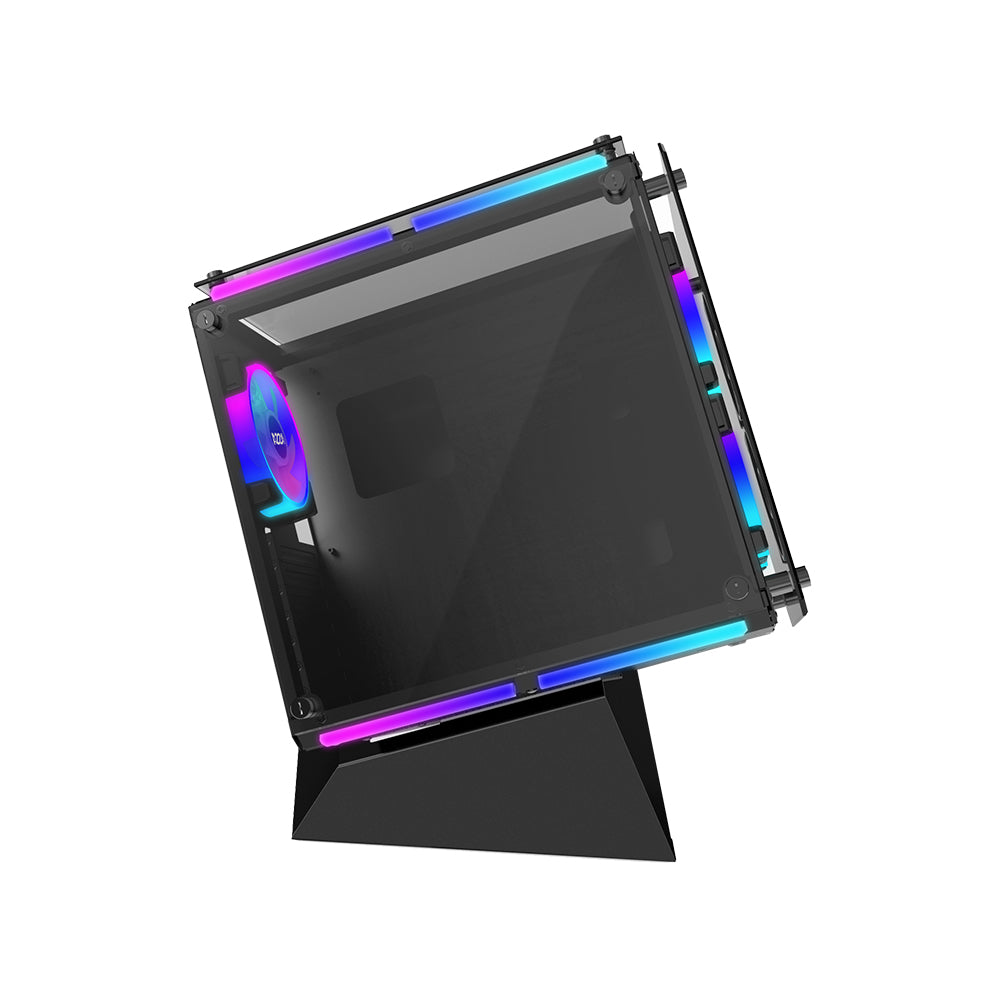

Stand included to raise the case itself at the best angle for displaying both interior components as well as the otherwordly colors and shape of this unique showpiece. Stand up and stand out from the rest.

Sublime Lighting

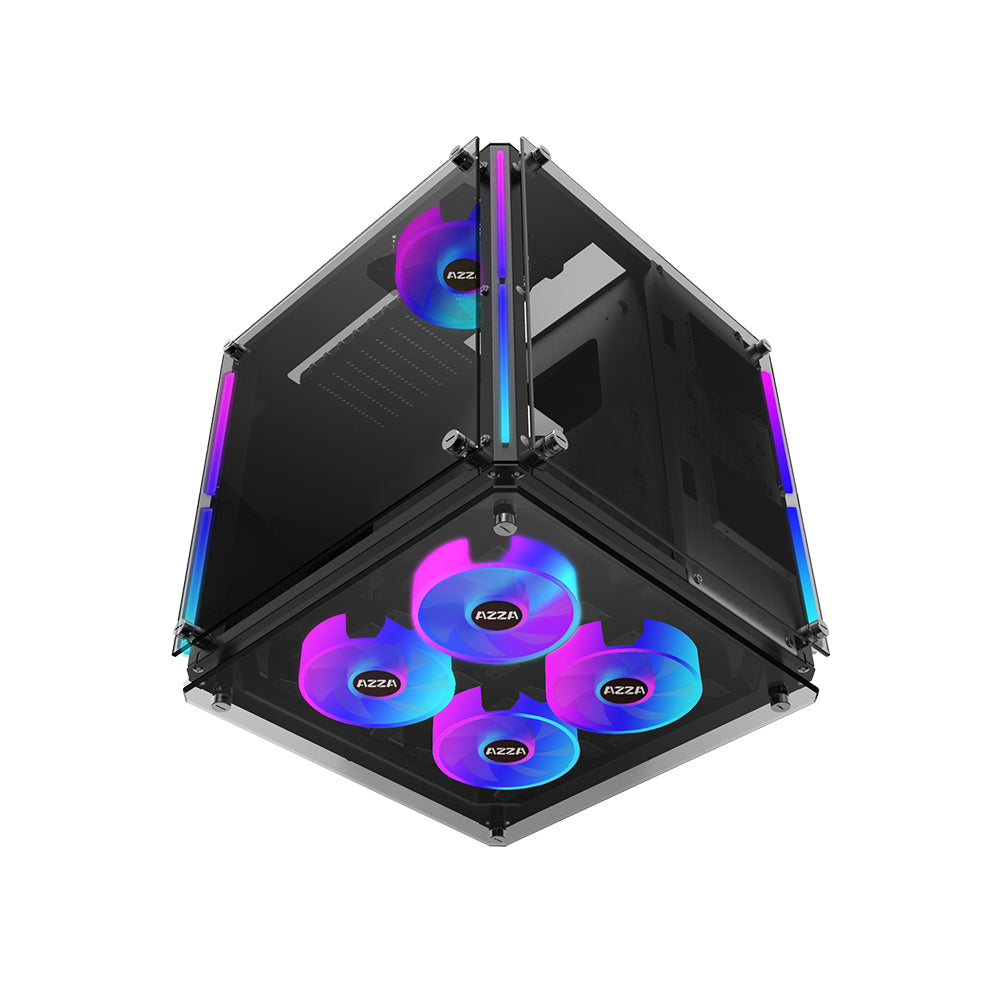

Sporting three exterior accented light strips and five Hurricane II ARGB fans, all with excellent coloring control able to accentuate the mesmerizing design of the case. The fans also have adjustable speeds while remaining extremely quiet.

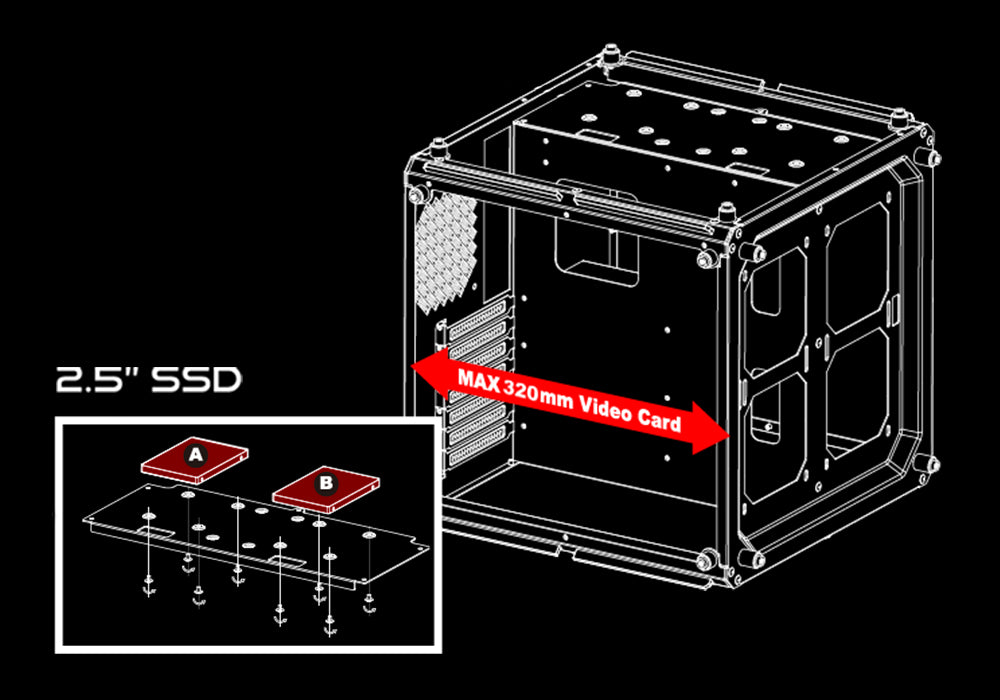

Supports 2 x 2.5" SSDs and GPUs up to 320 mm in length.

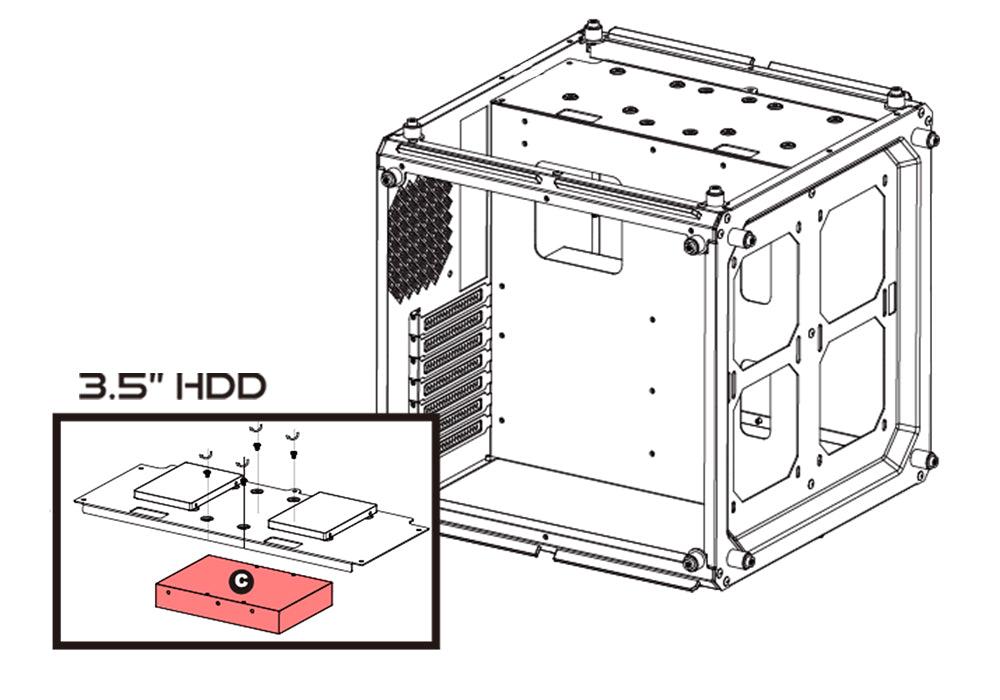

Swappable for 1 x 3.5" HDD which can be hidden in the back chamber

SPECIFICATIONS

CSAZ-802F

Download Manual
Type

ATX Cube Enclosure

Color

Black (exterior) / Black (interior)

Side Panels

3 x Tempered glass with rubber mounts
3 x Steel panels

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 320 mm

Motherboard Compatibility

ATX, Micro-ATX, ITX

2.5" Drive Bays

Up to 2

3.5" Drive Bays

Up to 1

Expansion Slots

7

I/O Ports

Power button

Case Dimension (H x W x D)

593 mm x 500 mm x 514 mm (with stand)
350 mm x 350 mm x 350 mm (no stand)

Weight

13.7 kg / 30.2 lbs

Addressable RGB Light Effects

Addressable RGB light strips are controlled by
RF remote. All addressable RGB devices can sync with
the motherboard, allowing the motherboard software
to control lighting directly.

Available Fan Ports

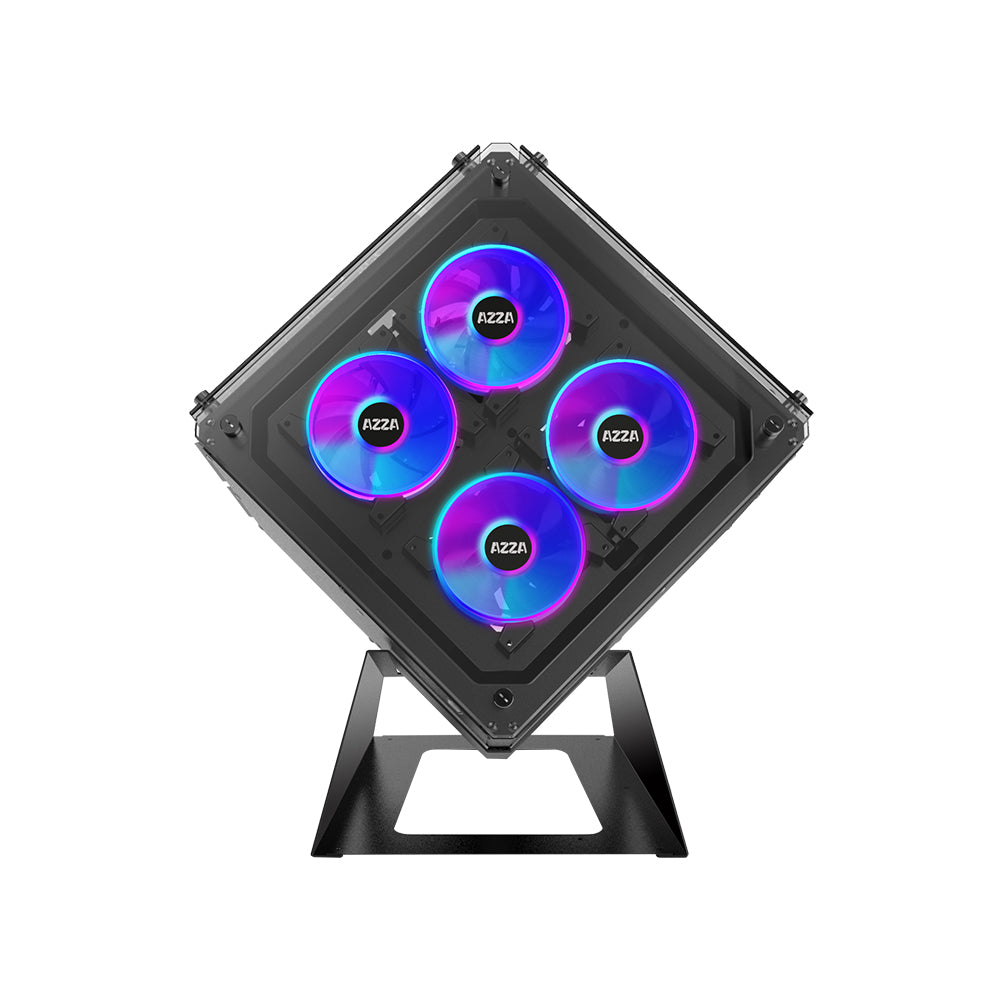

4 x 120 mm fan ports in front
1 x 120 mm fan port in the rear

Included Fans

5 x 120 mm AZZA Hurricane II ARGB Fans

Water Cooling

Supports radiators up to 240 mm in the front

Power Supply Support

Supports ATX power supply up to 190 mm in length

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
