AUGMENT


Augment not only presents the best heat dissipation effect but also adds the aesthetic tension of the building to make the vision more unique as if each player is a personalized powerhouse with his characteristics.

AUGMENT

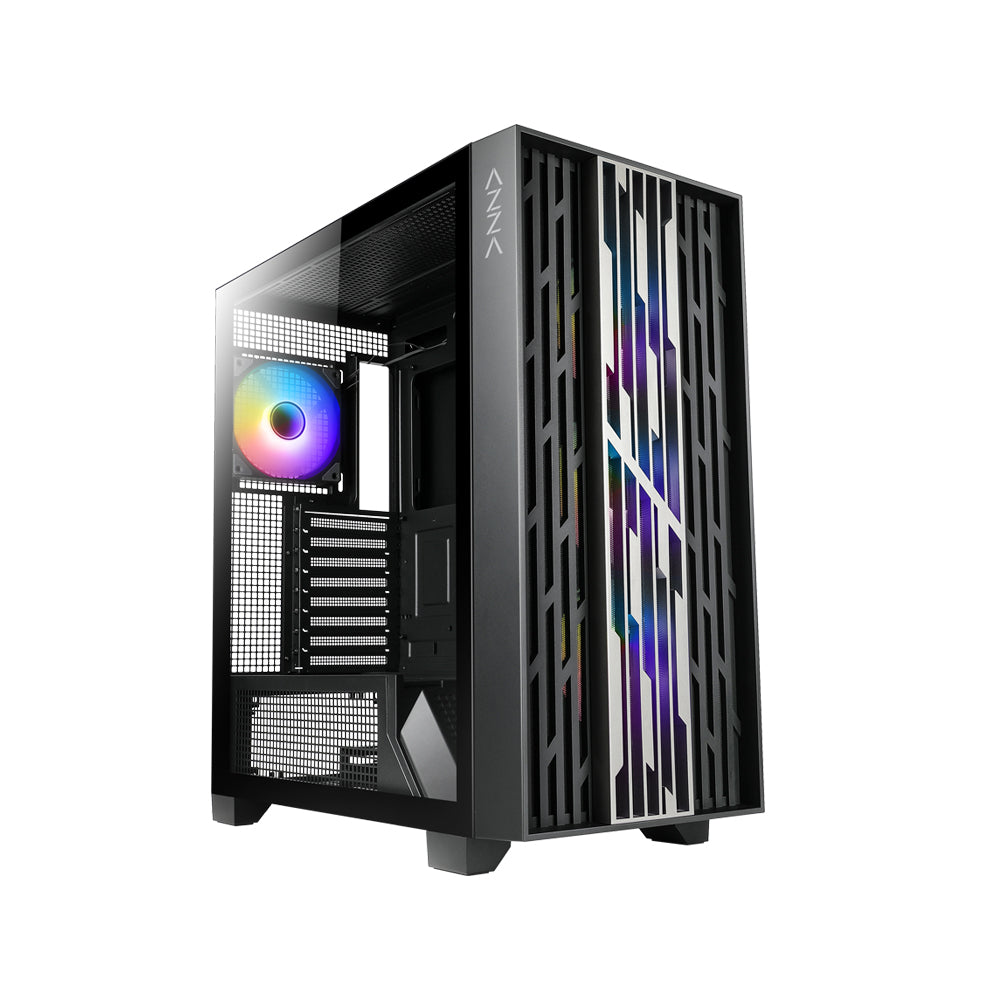

ATX Full-Tower

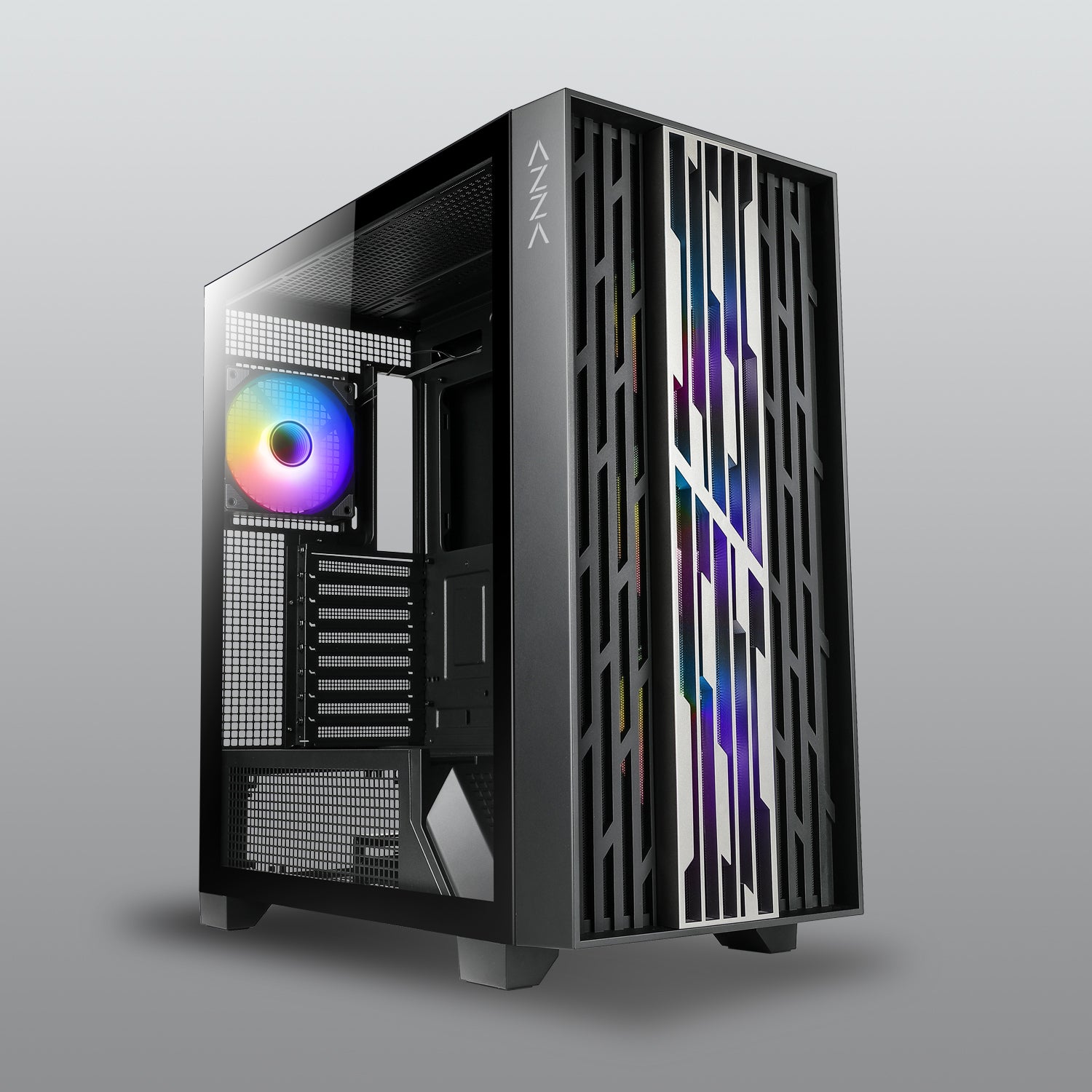

Premium Look

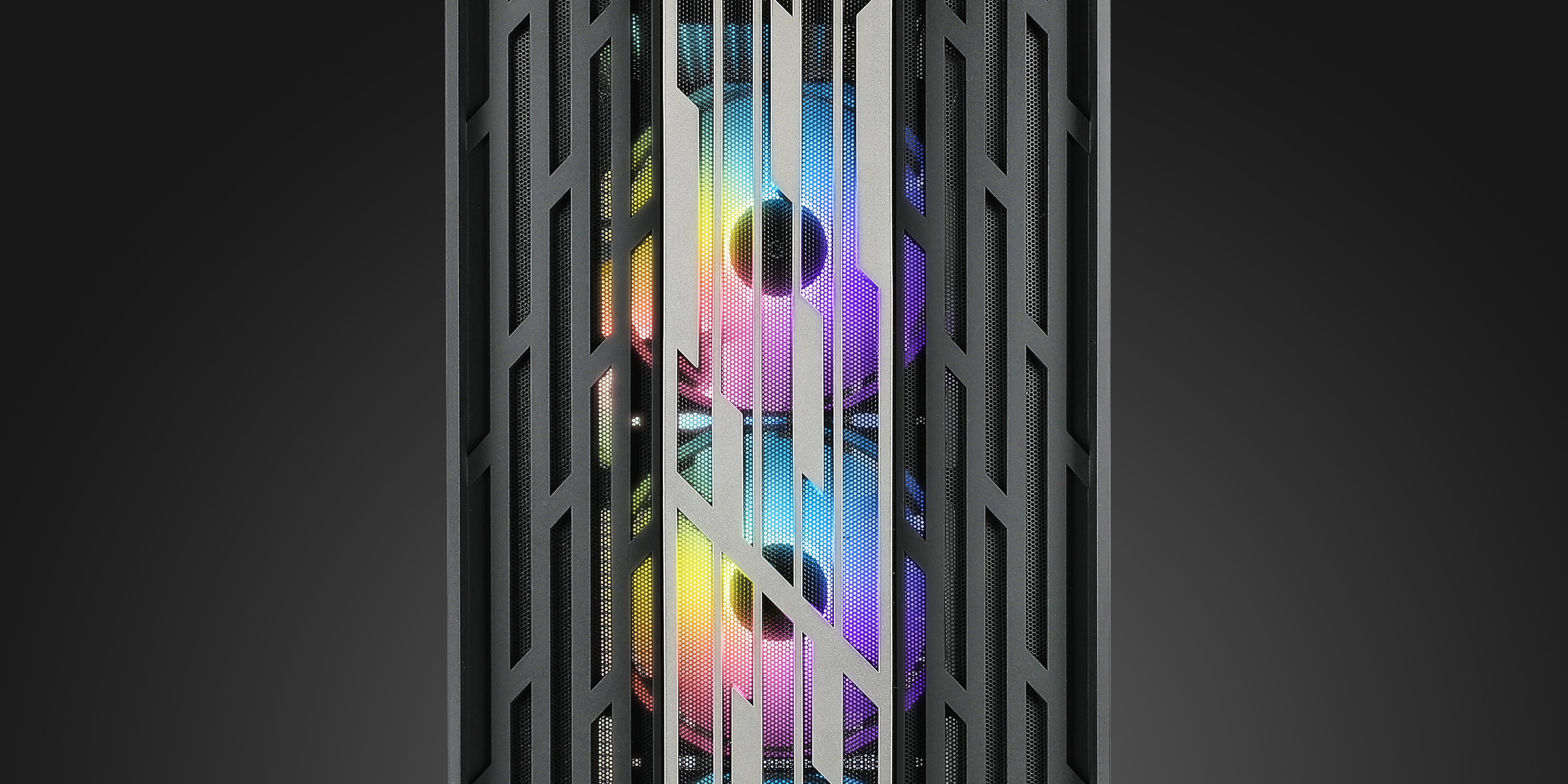

not only presents the best heat dissipation effect but also adds the aesthetic tension of the building to make the vision more unique. There are three ARGB 12 cm fans in front.

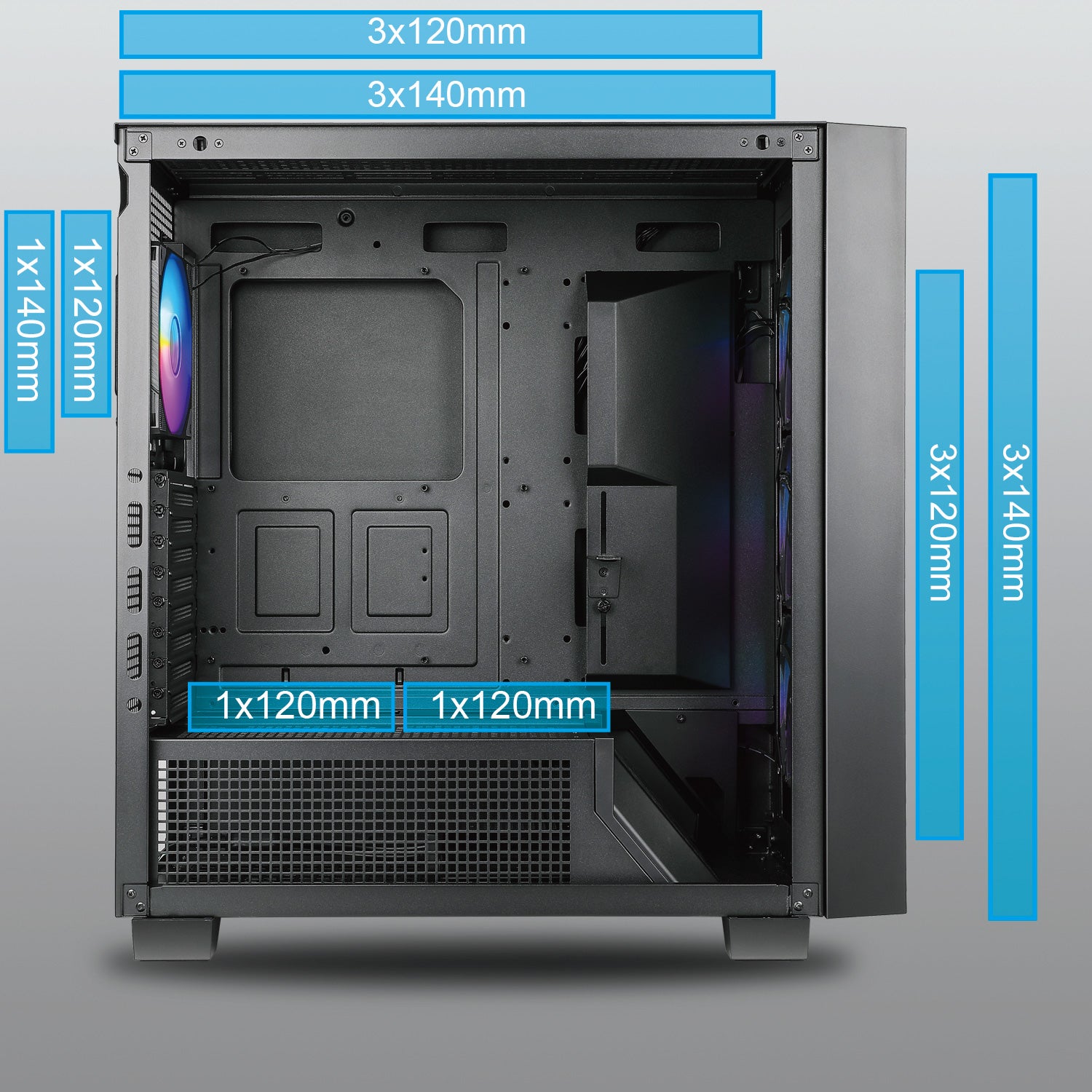

Multifaceted Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120mm fans above the PSU shroud, bringing the total fan support up to 9 x 120mm fans!

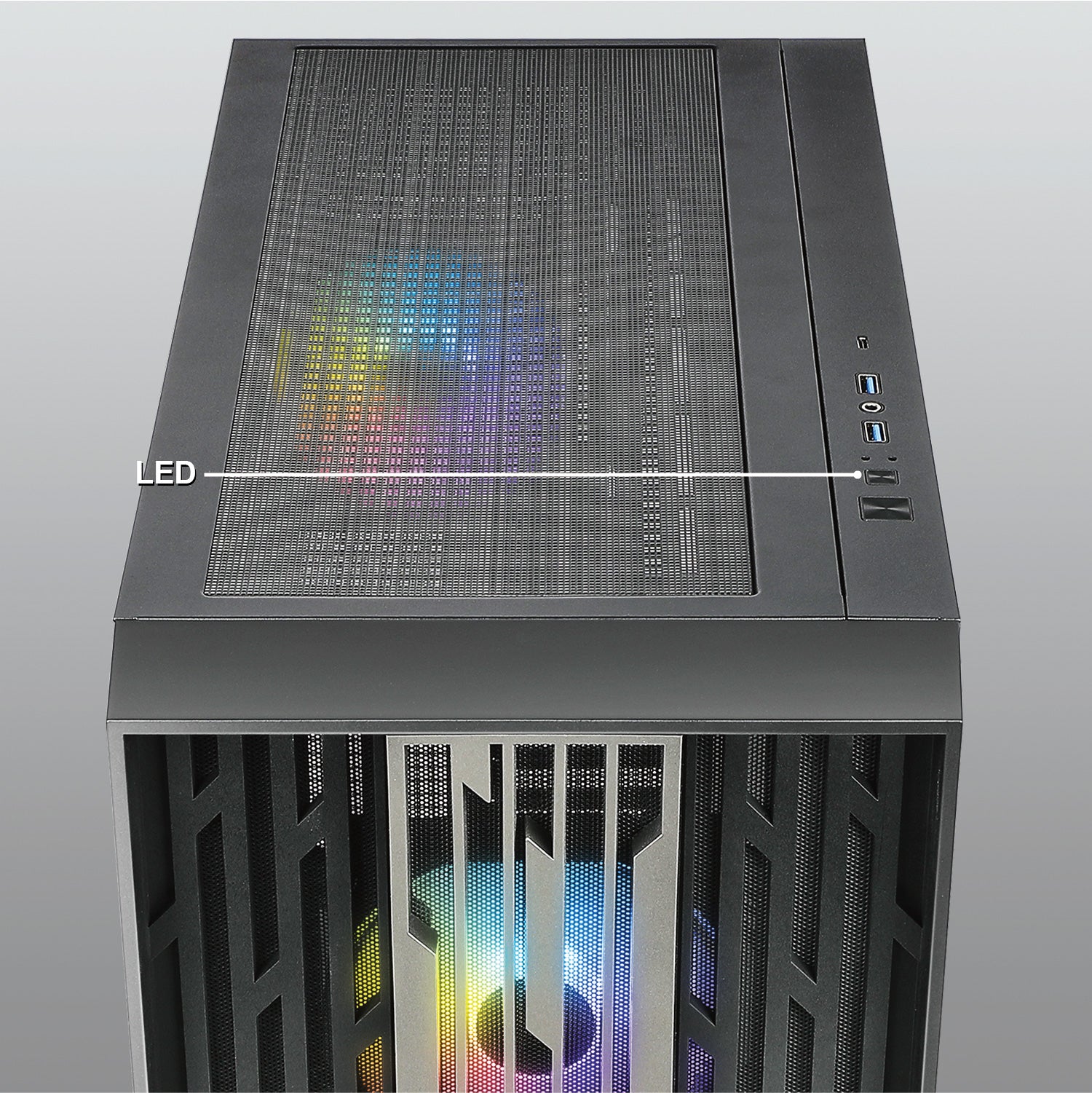

Customize Your Styles

Controllable fan lighting via the top panel LED button offers different lighting modes.

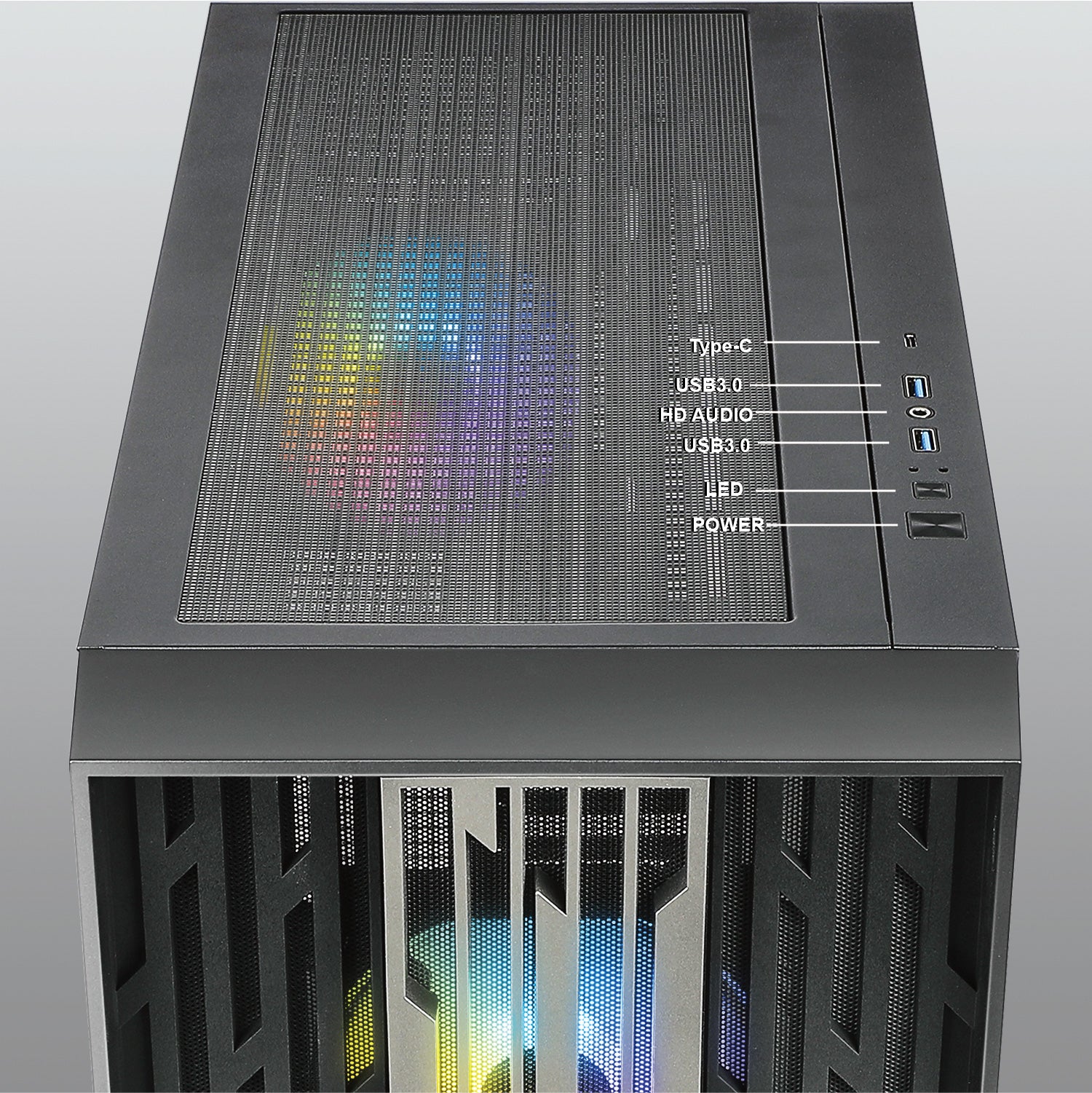

Intuitive I/O

The AUGMENT presents a clean front I/O which includes:

  • Power button
  • LED button
  • 2 x USB 3.0 ports
  • HD-Audio
  • Type-C

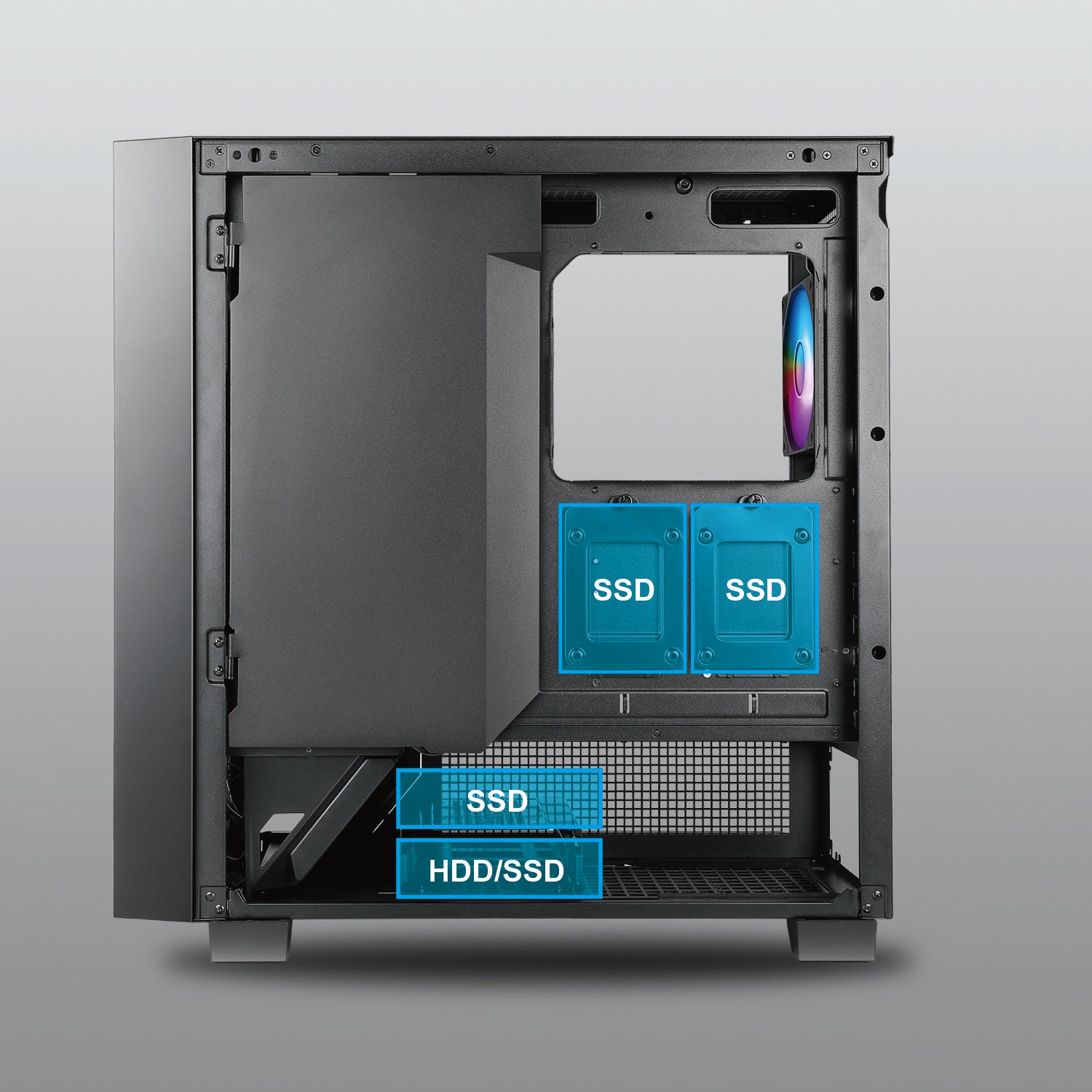

Flexible Storage Options

Drive cage tray supports 1 x 2.5" SSD or 1 x 3.5" HDD
Top of drive cage supports 1 x 2.5" SSD

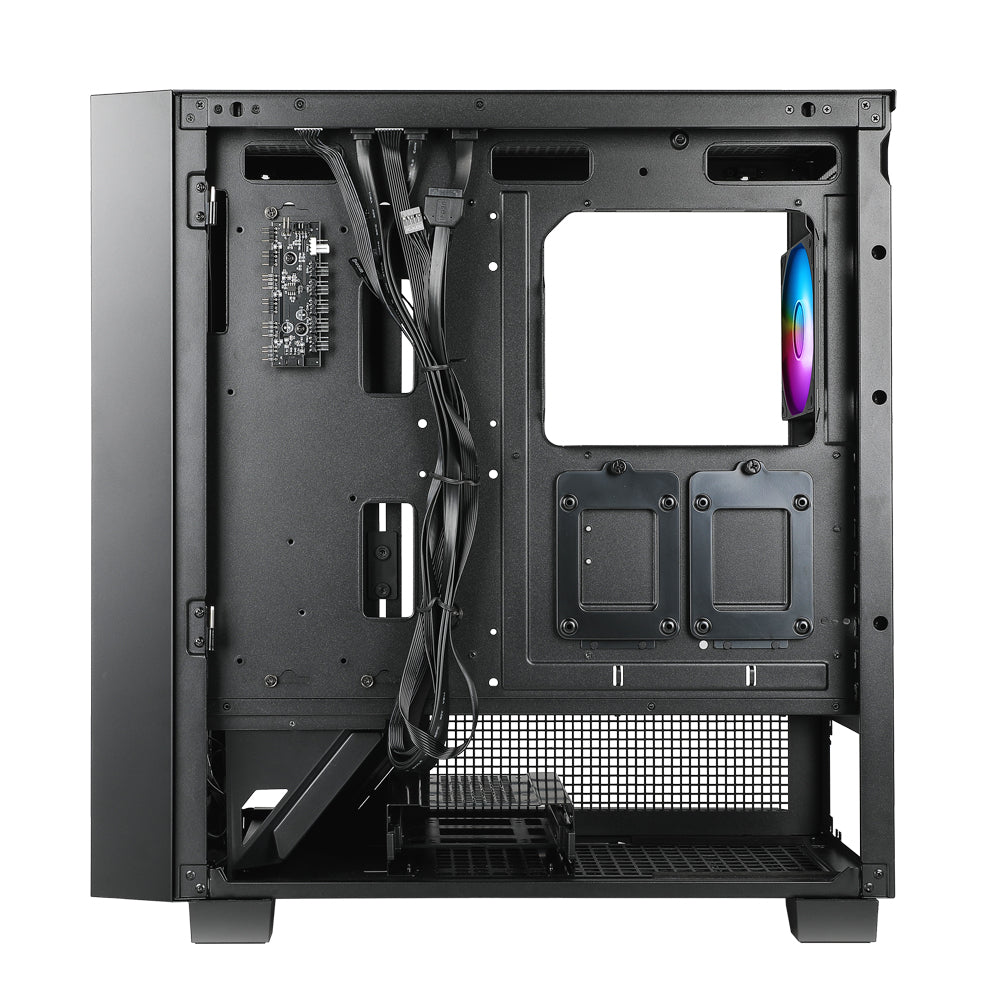

Right side panel support 2 x 2.5" SSDs

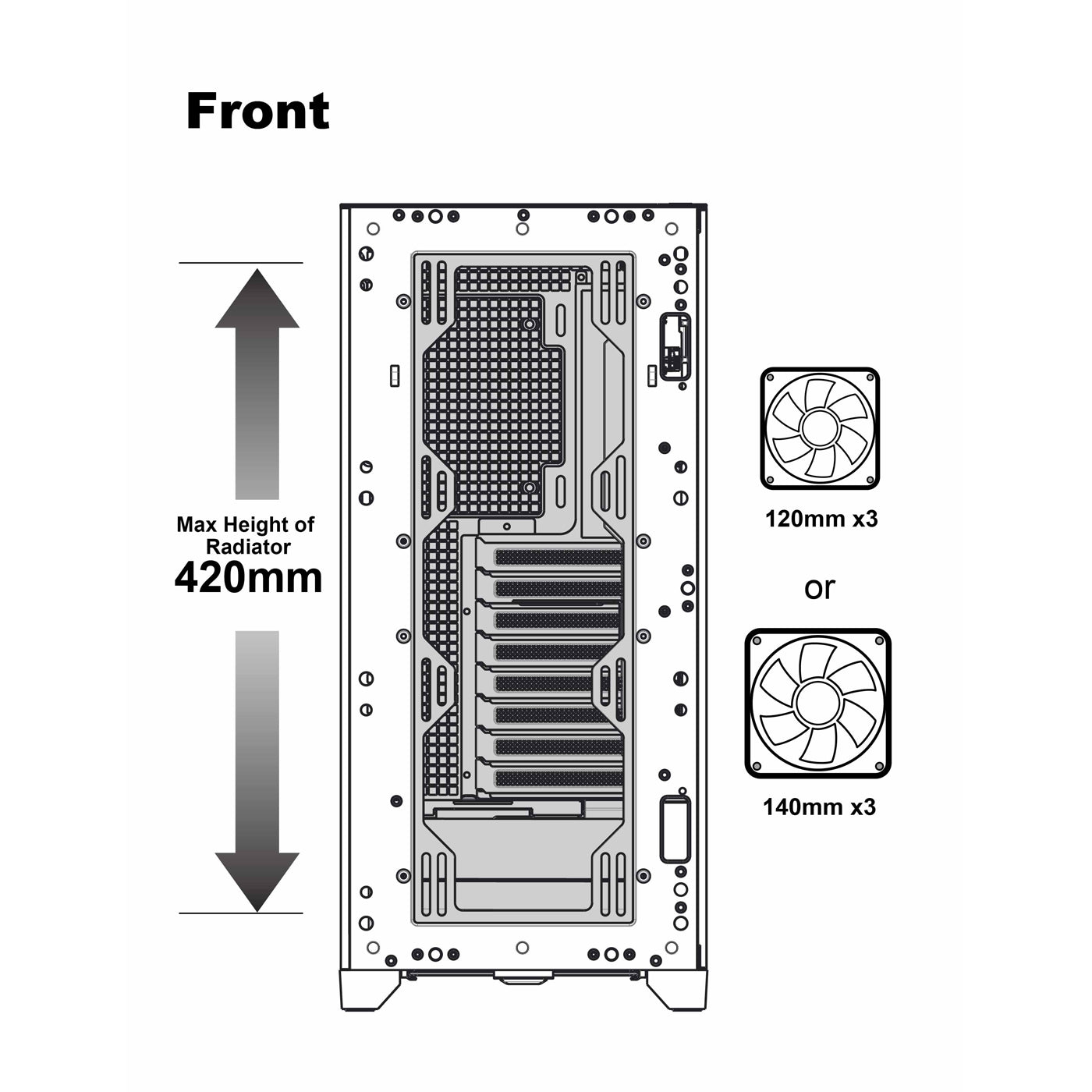

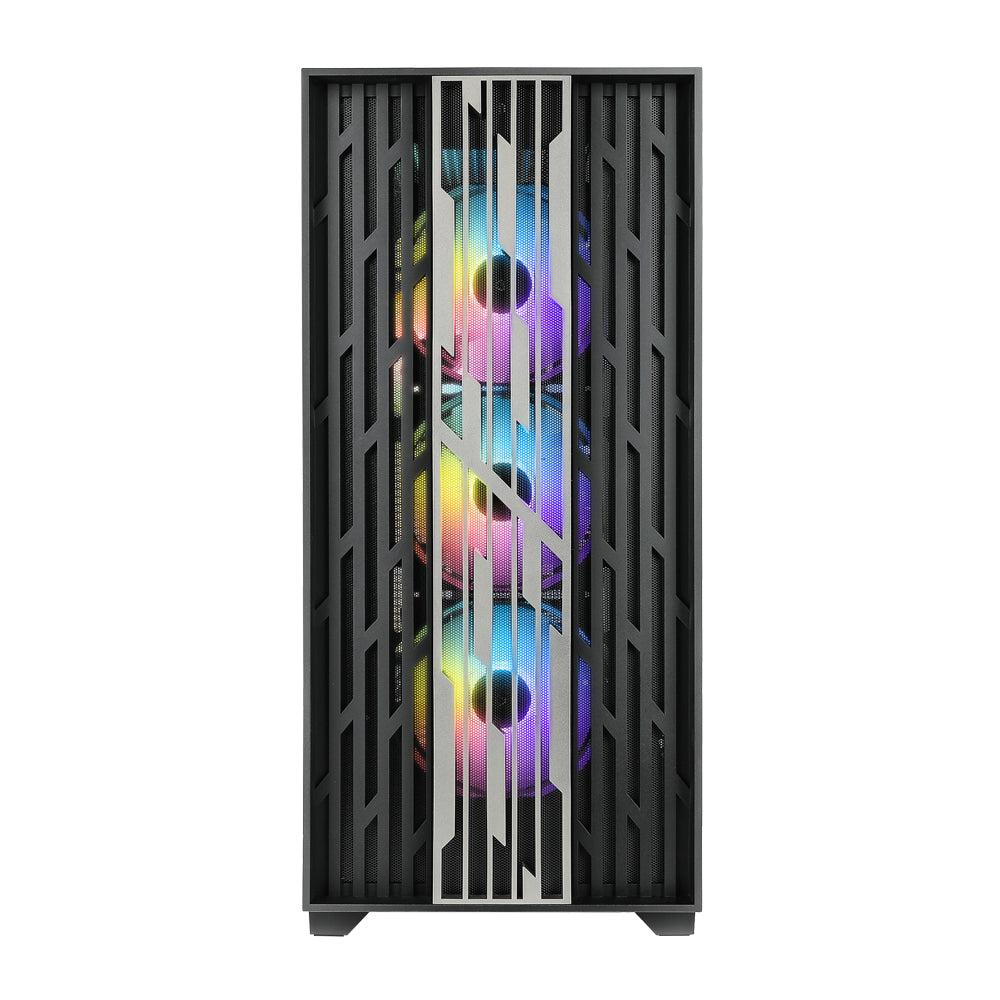

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 420 mm

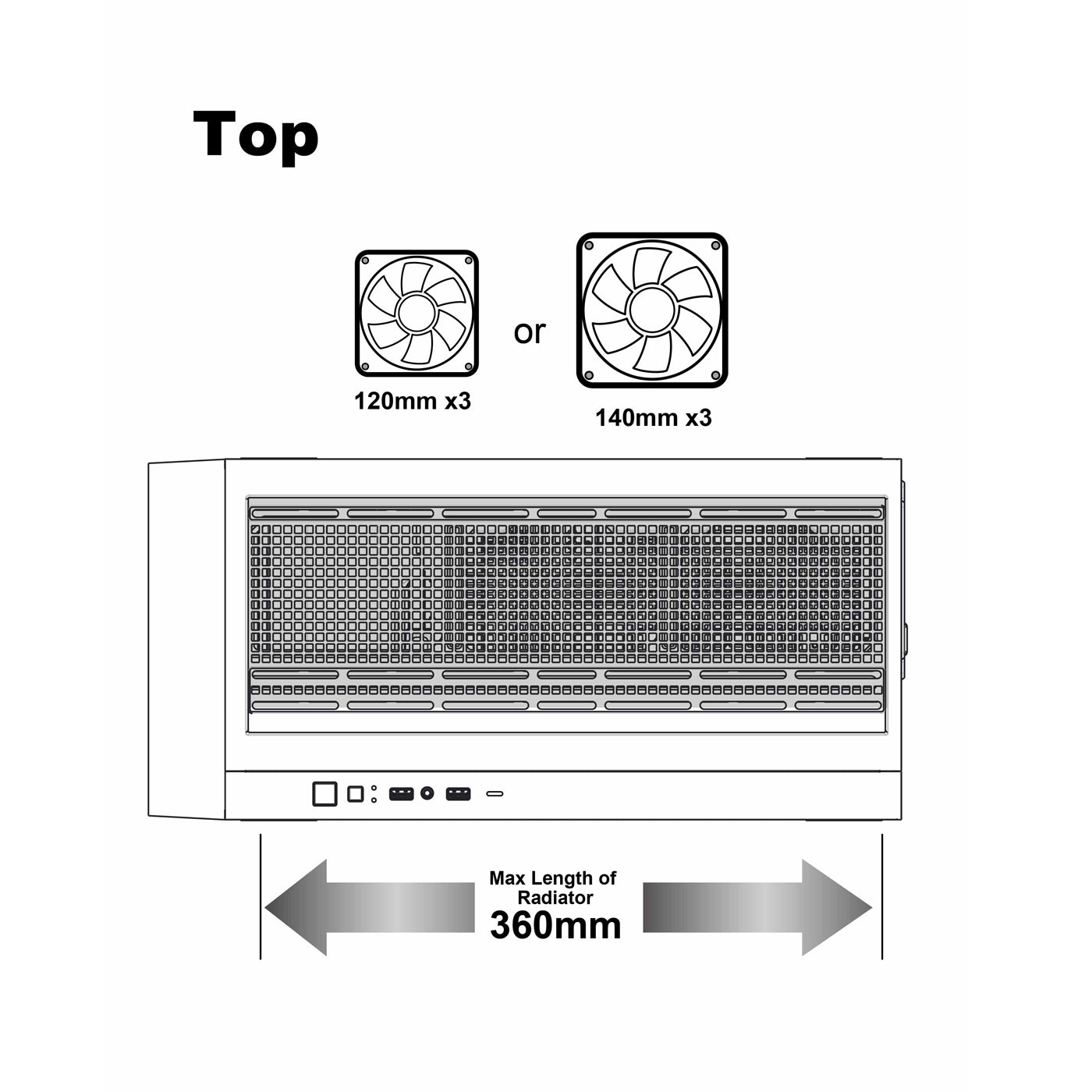

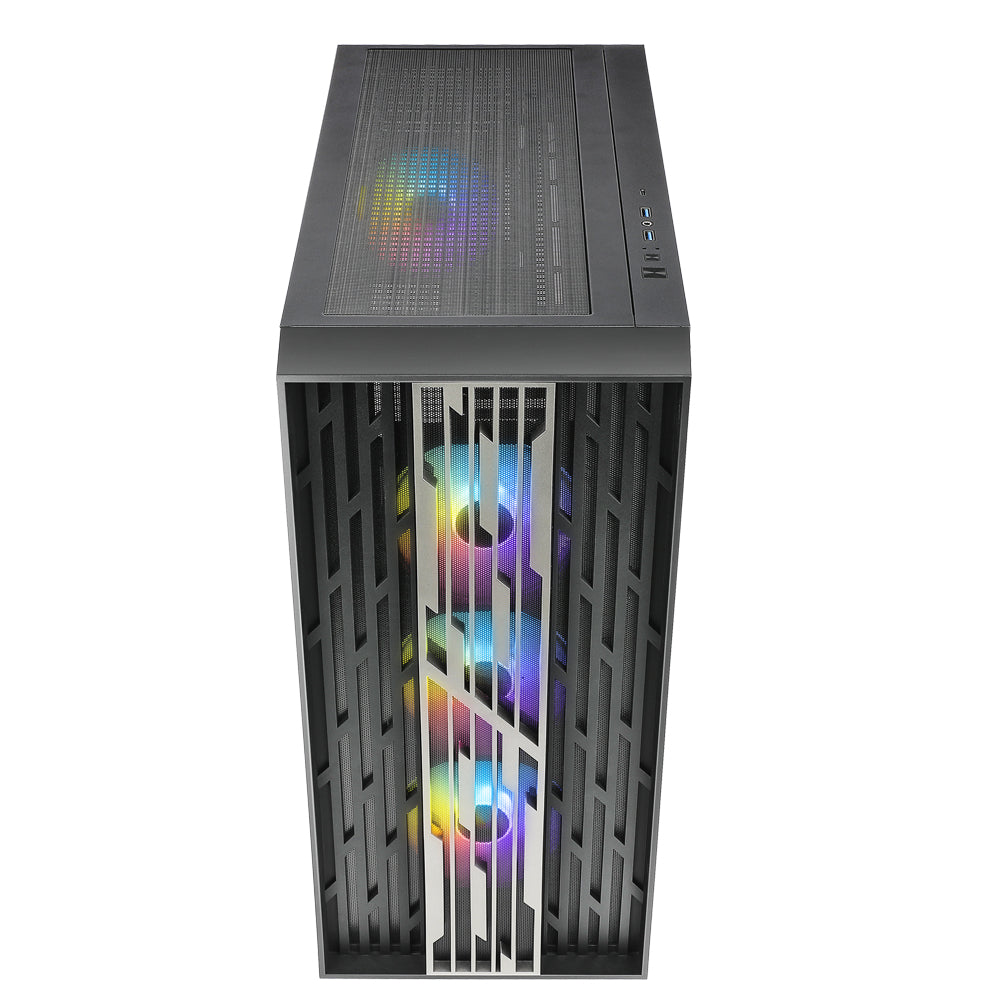

Top Cooling Support

Fans: Up to 3 x 120 mm or 3 x140 mm

Radiator: Up to 360 mm

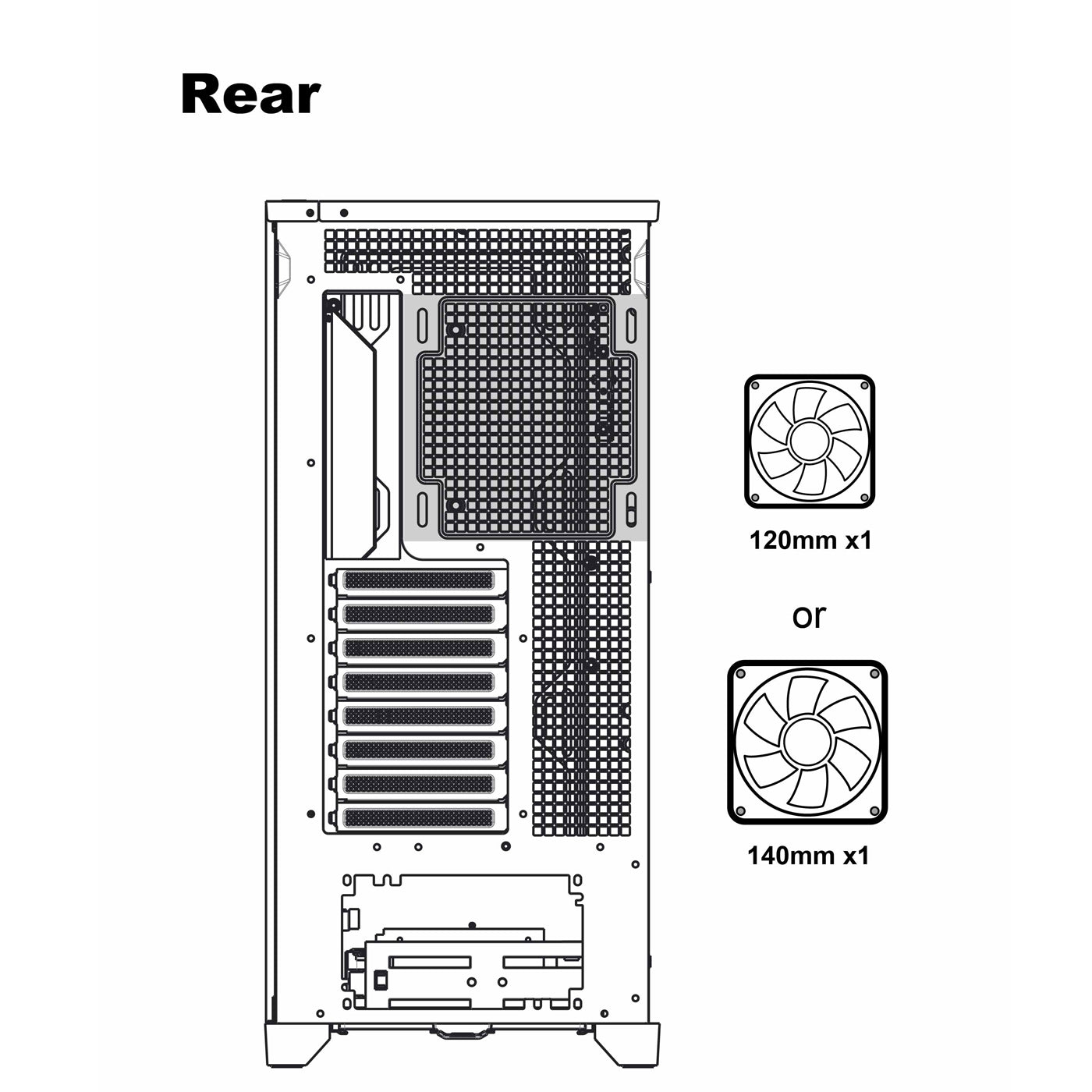

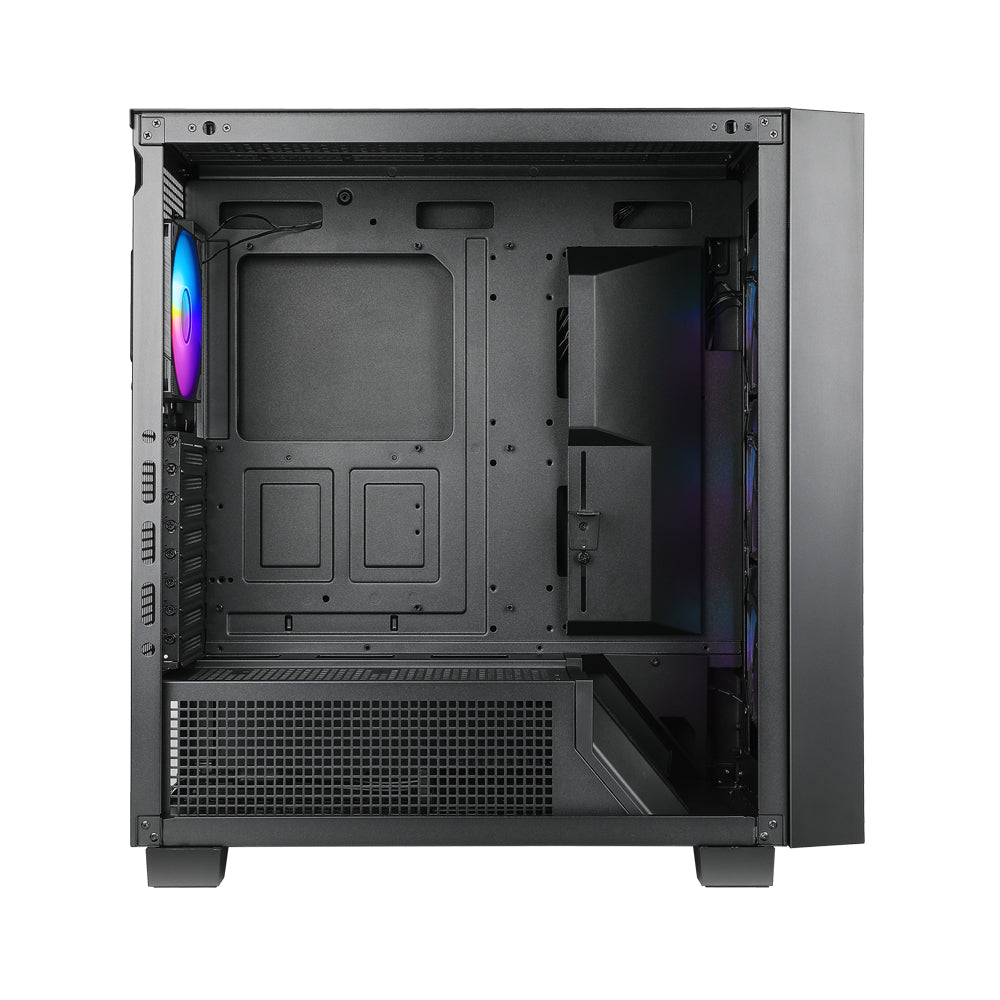

Rear Cooling Support

Fan: 1 x 120 mm or 1 x 140 mm

SPECIFICATIONS

CSAZ-510

Download Manual
Type

ATX Full Tower

Color

Black/Black(interior)

Side Panels

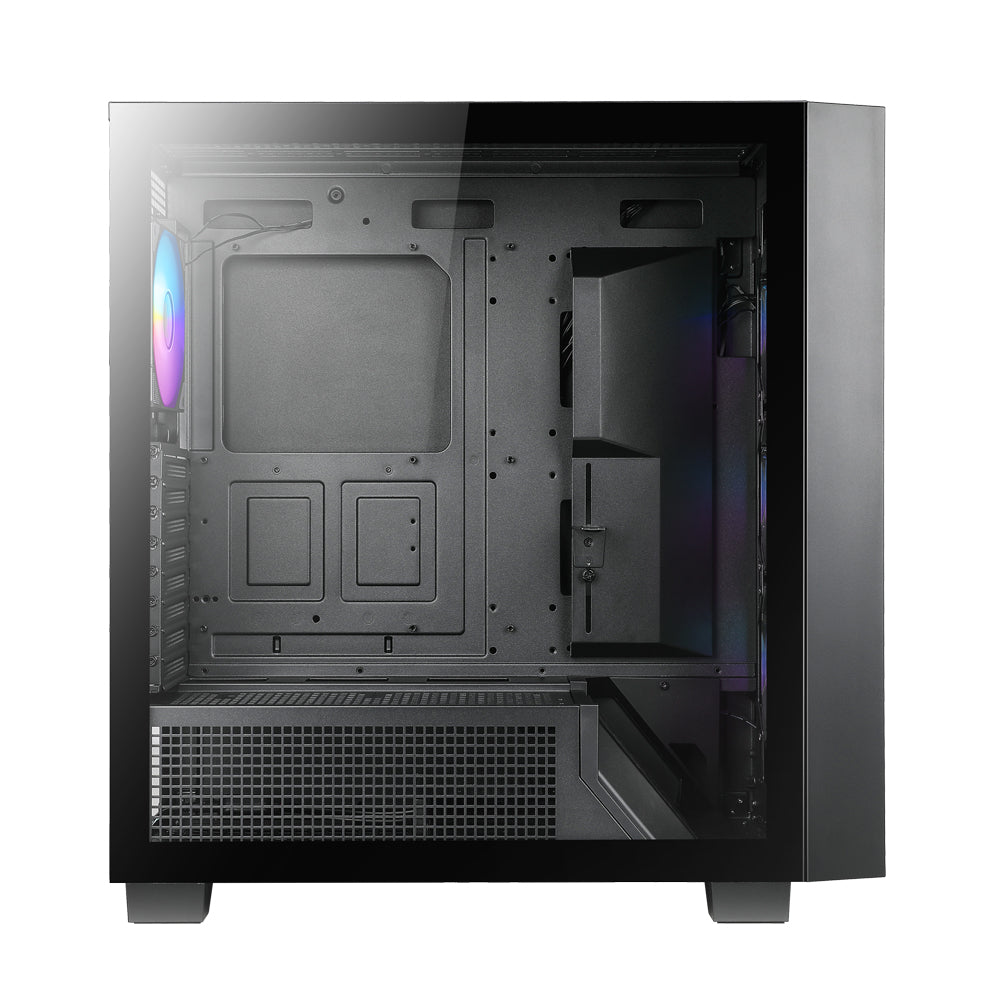

Left side panel: toolless mounting glass panel

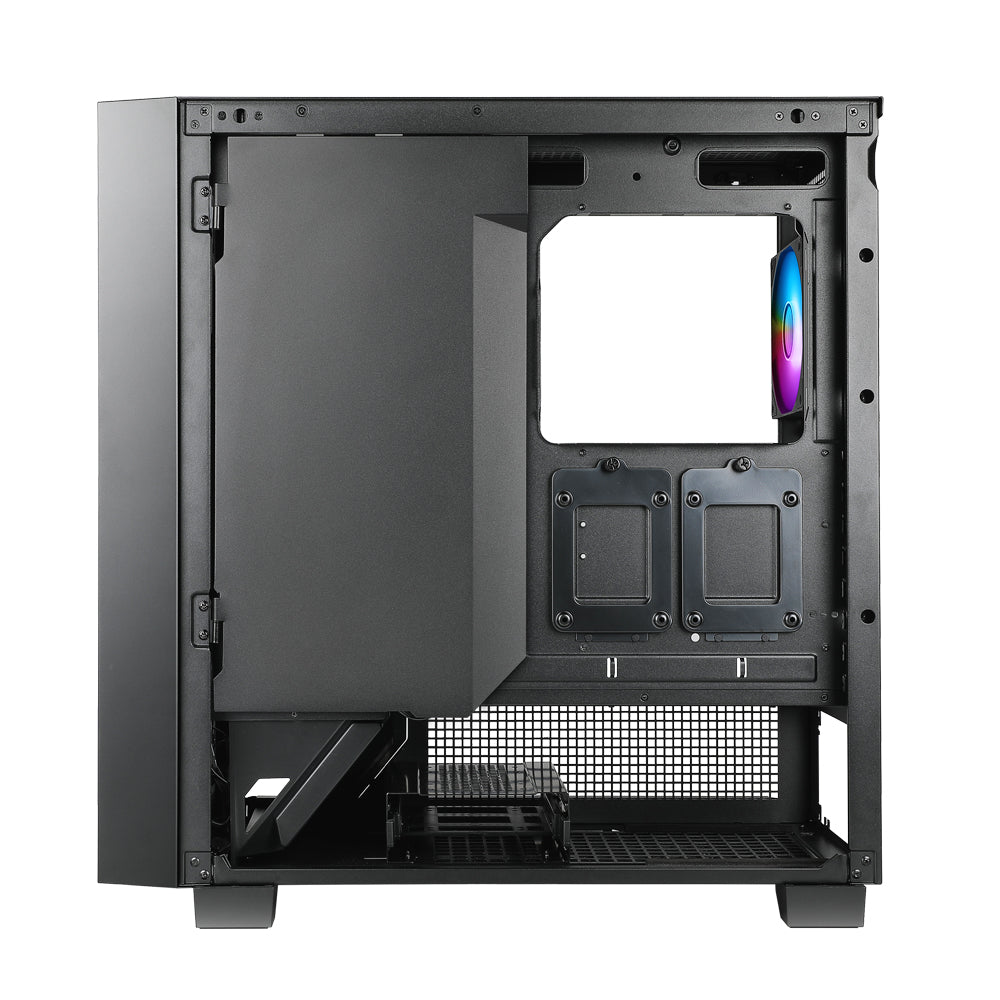

Right side panel: toolless mounting metal panels

Max CPU Cooler Height

Up to 180 mm

Max Video Card Length

Up to 420 mm

Motherboard Compatibility

EATX(<277mm) / ATX / Micro ATX / ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 1

Expansion Slots

8

Top Ports

Power button, LED button, HD Audio, USB 3.0 x 2,Type-C

Case Dimension (H x W x D)

490x235x517mm/19.3x9.3x20.4 inches

Weight

10.1kg /22.3 lbs

Addressable RGB Light Effects

Addressable RGB devices connected to the ARGB control board can be controlled with the LED button or motherboard lighting software.

Available Fan Ports

3x120mm or 3x140mm fan ports in the front

3x120mm or 3x140mm fan ports on the top

1x120mm or 1x140mm Fan port in the rear

2x120mm Fan ports on the Power Supply Shroud

Included Fans

3x120mm LFO-4612D ARGB fan in the front

1x120mm LFO-4312D ARGB fan in the rear

Water Cooling

Supports radiators up to 360/420mm in the front

Supports radiators up to 280/360mm on the top

Dust Filters

Removable dustproof net on the top,dust filter on bottom of chassis

Power Supply Support

Bottom mounted ATX Power Supply
